Side Curtain Airbag: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required. For correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Be. Fore beginning any service procedure in this manual, refer to Pyrotechnic Device Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering .Headliner - Lowering

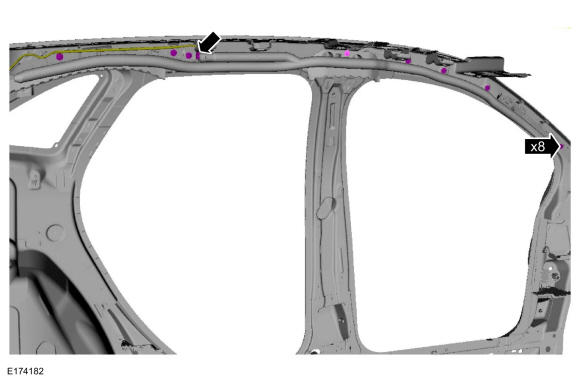

Remove the screws.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

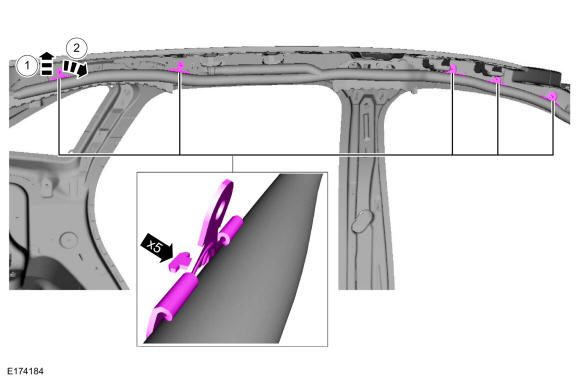

1. Slide the bracket up and align the bracket tab to the sheet metal opening.
2. Rotate the top of the bracket away from the sheet metal and detach each of the brackets.
Courtesy of FORD MOTOR COMPANY

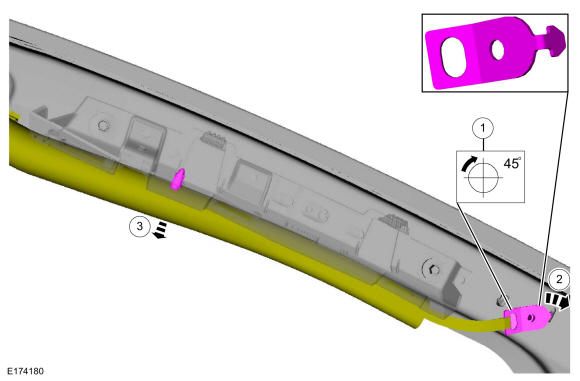

1. Rotate the bracket and align the bracket tab to the sheet metal opening.
2. Pivot the bracket away from the sheet metal and detach the bracket.
3. Detach the pin-type retainer.
Courtesy of FORD MOTOR COMPANY

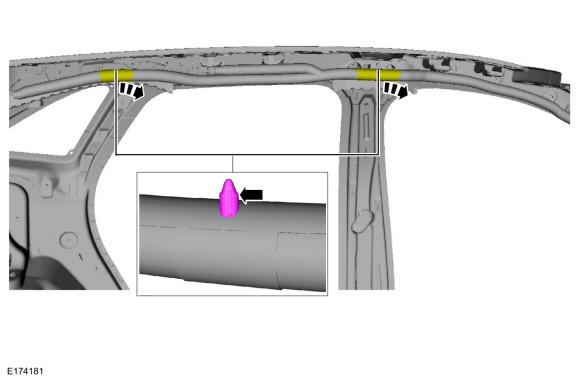

Detach the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

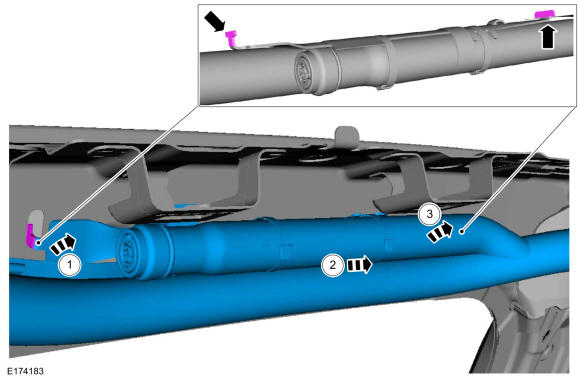

1. Rotate the inflator rear tab out of the sheet metal.
2. Slide the inflator. Forward and align the front tab to the sheet metal opening.
3. Rotate the inflator front tab out of the sheet metal and remove the side curtain airbag.

Courtesy of FORD MOTOR COMPANY
