Headliner - Lowering

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

  1. Remove the following items:

    1. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
    2. On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
    3. On both sides, remove the loadspace trim panel. Refer to: Loadspace Trim Panel .
    4. On both sides, remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .

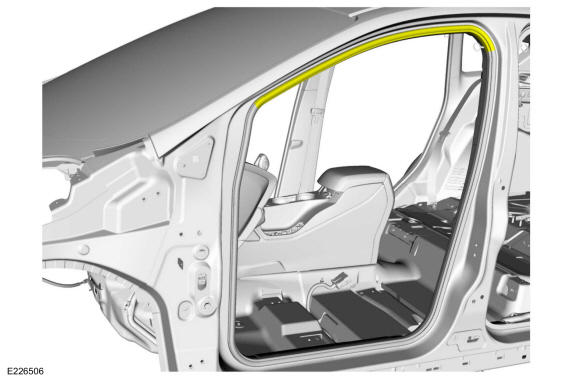

  2. On both sides. Position aside the front door weatherstrip.
    GFD230076Courtesy of FORD MOTOR COMPANY

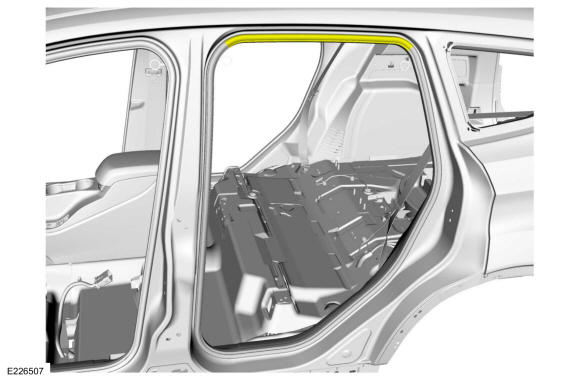

  3. On both sides. Position aside the rear door weatherstrip.
    GFD230077Courtesy of FORD MOTOR COMPANY

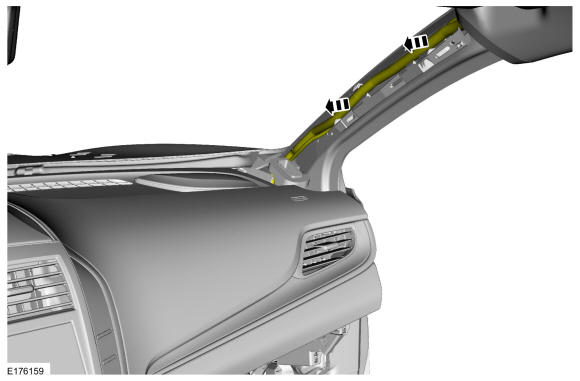

  4. Release the headliner wiring harness and rear washer hose from the RH A-pillar.
    GFD230111Courtesy of FORD MOTOR COMPANY

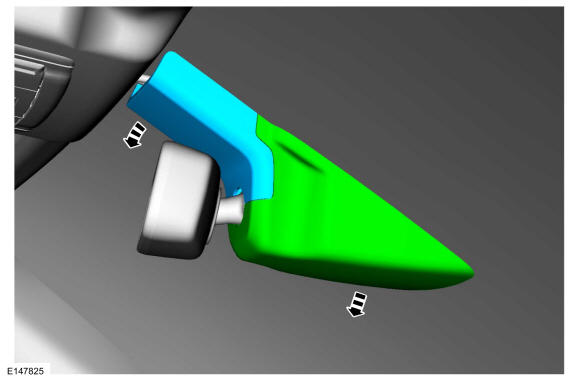

  5. If equipped. Remove the interior rear view mirror covers.
    GFD230080Courtesy of FORD MOTOR COMPANY

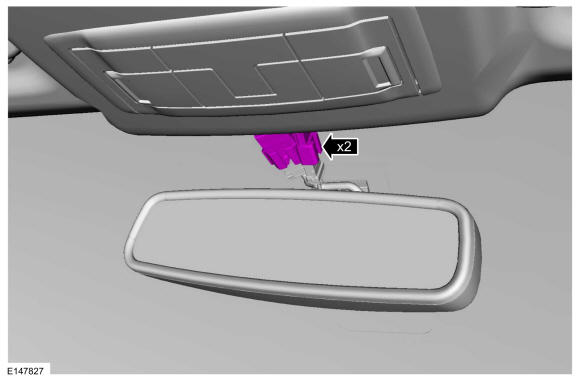

  6. If equipped. Disconnect the interior rear view mirror electrical connectors.
    GFD230081Courtesy of FORD MOTOR COMPANY
  7. NOTE: RH front shown, all others similar.

    If equipped. Remove the retainers and all the grab handles.

    GFD229820Courtesy of FORD MOTOR COMPANY

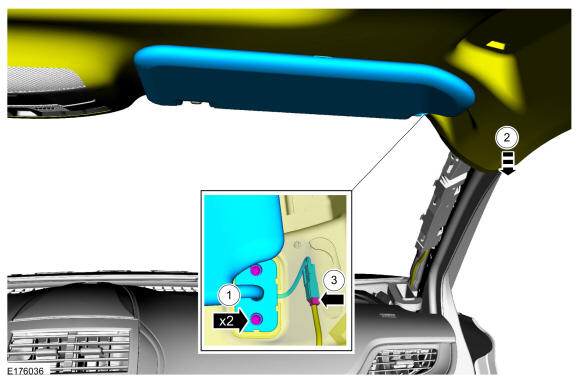

  8. NOTE: RH side shown, LH side similar.

    On both sides. Remove the sun visor.

    1. Remove the retainers.
    2. Position the corner of the headliner down.
    3. Disconnect the electrical connector and remove the sun visor.

    GFD230082Courtesy of FORD MOTOR COMPANY

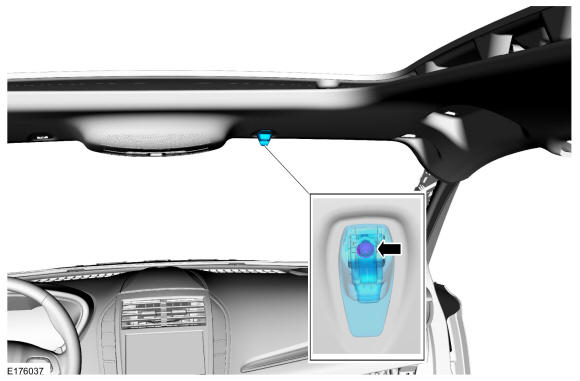

  9. NOTE: RH side shown, LH side similar.

    On both sides. Remove the retainer and the sun visor clip.

    GFD230083Courtesy of FORD MOTOR COMPANY

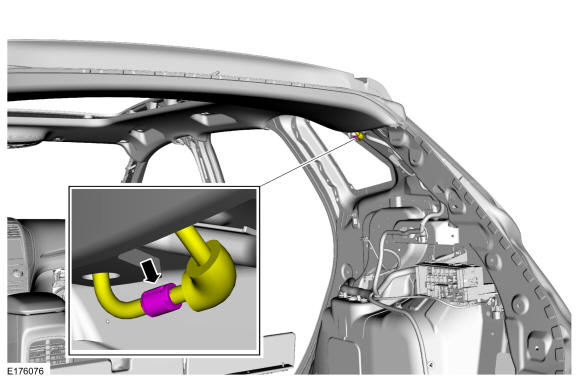

  10. NOTE: Plug the rear washer hose after disconnecting. Failure to do so will result in damage to the interior due to fluid leakage.

    Disconnect the rear washer hose C-lock coupling. Refer to: Washer Hose Coupling .

    GFD230084Courtesy of FORD MOTOR COMPANY

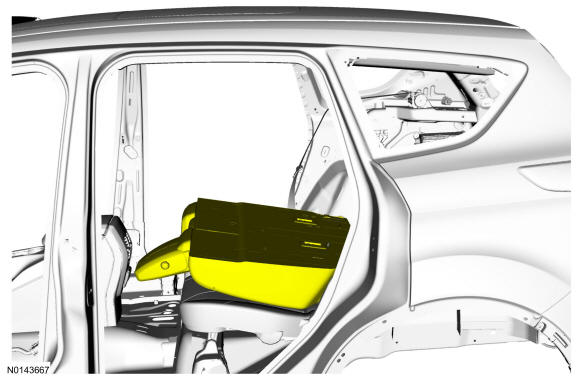

  11. Position the rear seat backrests down.
    GFD230112Courtesy of FORD MOTOR COMPANY

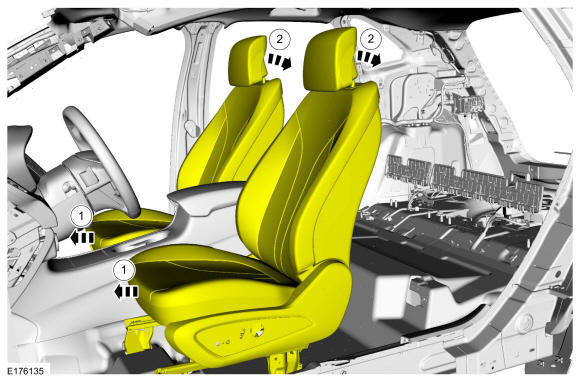

  12. On both sides. Position the front seats in the full forward and full relclined position.

    1. Position the seats in the full forward position.
    2. Position the seats in the full reclined position.

    GFD230113Courtesy of FORD MOTOR COMPANY
  13. Release the rear 2-way locators at the rear of the headliner.
    GFD229821Courtesy of FORD MOTOR COMPANY

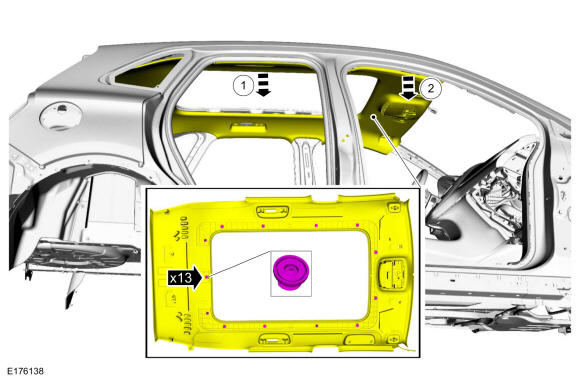

  14. NOTE: Vehicles equipped with roof opening panel shown, others similar.

    1. From inside the vehicle, grab the headliner from the roof opening panel cutout and pull down to release the magnets holding the headliner to the roof.
    2. While holding the headliner down on the inside of the vehicle around the roof opening panel cutout, pull down on the outer edge of the headliner and lower the headliner.

GFD230114Courtesy of FORD MOTOR COMPANY
