Restraints Control Module (RCM): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current RCM installed. If the current RCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the RCM following the on-screen instructions.
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

If a SRS fault is present, continue to Step 3. Otherwise, turn the ignition off, wait at least one minute and continue to Step 4.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .

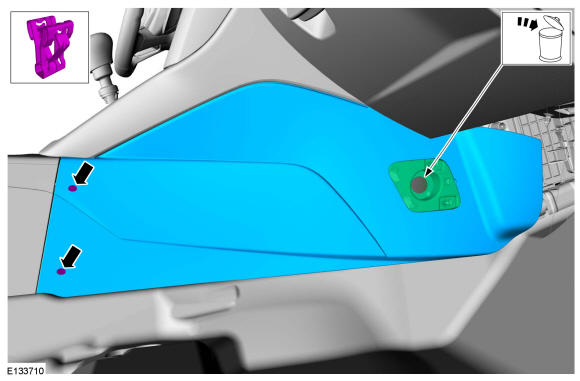

Remove the pin-type retainer cover, the pin-type retainer, detach and remove the floor console lower panel.

Courtesy of FORD MOTOR COMPANY

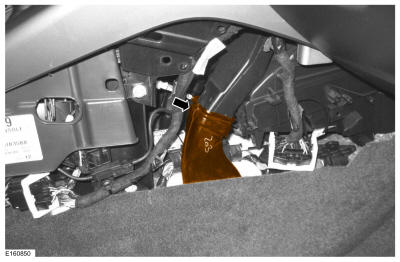

Remove the duct.

Courtesy of FORD MOTOR COMPANY

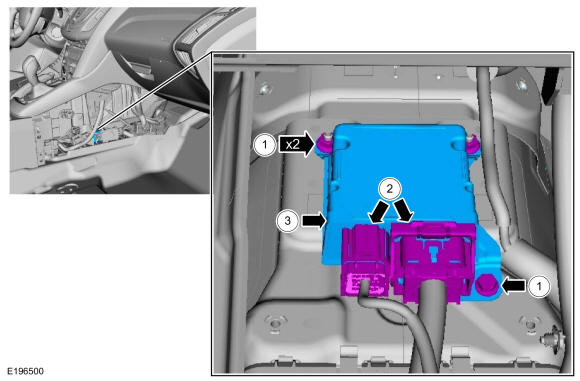

1. Remove the nuts and bolt.
  Torque

  : 97 lb.in (11 Nm)
2. Disconnect the electrical connector.
3. Remove the RCM.

Courtesy of FORD MOTOR COMPANY
