Front Impact Severity Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
Both sensors
-
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
If a SRS fault is present, continue to Step 2. Otherwise, turn the ignition off, wait at least one minute and continue to Step 3.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering . sensor

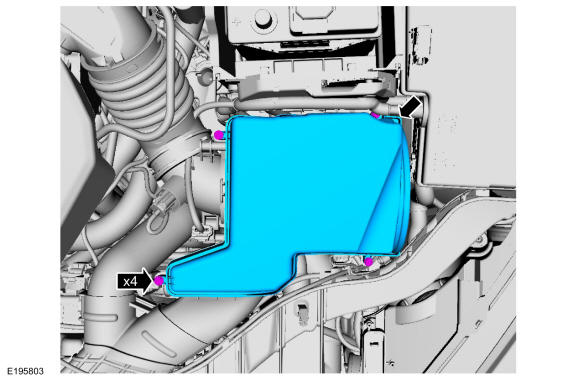

- Remove the 4 screws and the air cleaner cover.

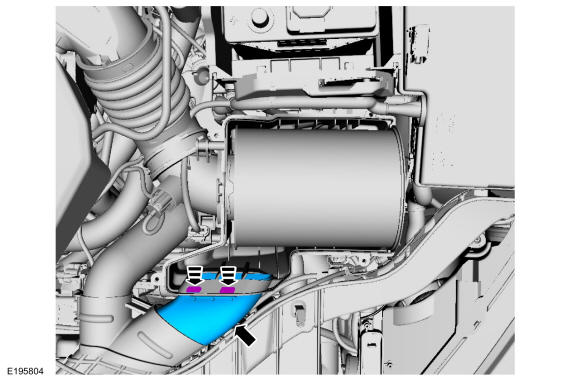

- Push down on the retaining tabs and remove the air cleaner inlet duct.
Both sensors
-

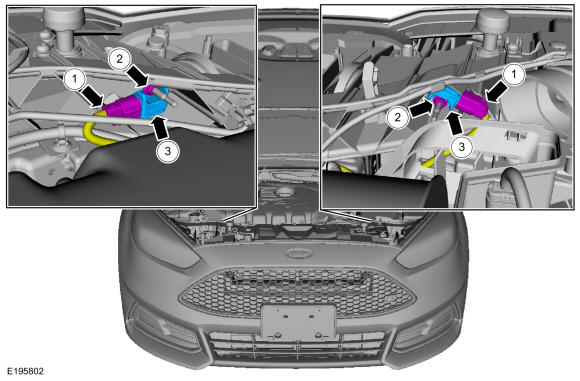

- Disconnect the front impact severity sensor electrical connector.
- Remove the front impact severity sensor nut.
Torque
: 80 lb.in (9 Nm)
- Remove the front impact severity sensor.
