Driver Airbag: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
If a SRS fault is present, continue to Step 2. Otherwise, turn the ignition off, wait at least one minute and continue to Step 3.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
- Remove the steering column shrouds. Refer to: STEERING COLUMN SHROUDS .
-

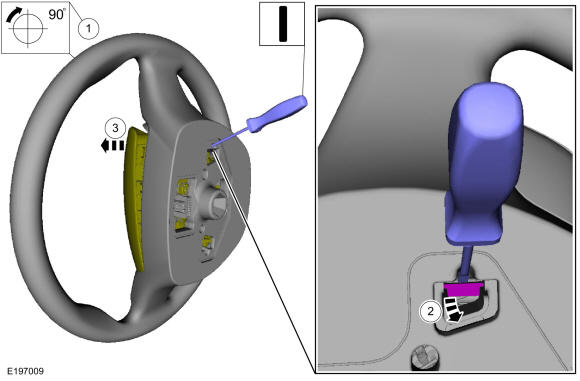

- Turn the component clockwise through 90 degrees.
- Pivot the spring clip disengaging it from the driver airbag. Use the General Equipment: Flat-Bladed Screwdriver
- Detach the driver airbag.
-

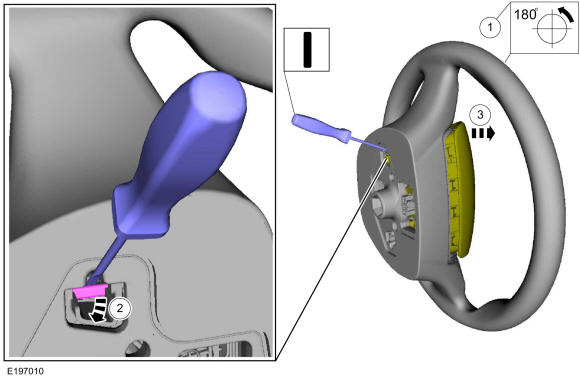

- Turn the component clockwise through 180 degrees.
- Pivot the spring clip disengaging it from the driver airbag. Use the General Equipment: Flat-Bladed Screwdriver
- Detach the driver airbag.

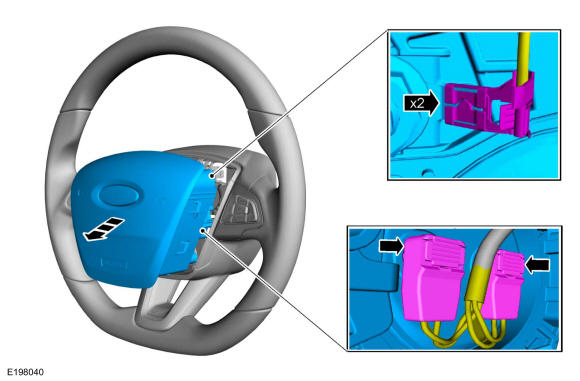

- Disconnect the electrical connectors and remove the driver airbag.
