Driver Airbag: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System deployment. Make sure the restraint system is depowered before reconnecting the component. Refer to the Supplemental Restraint System depowering General Procedure in Supplemental Restraint System (SRS) Depowering and Repowering . Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.
  1. To install, reverse the removal procedure.

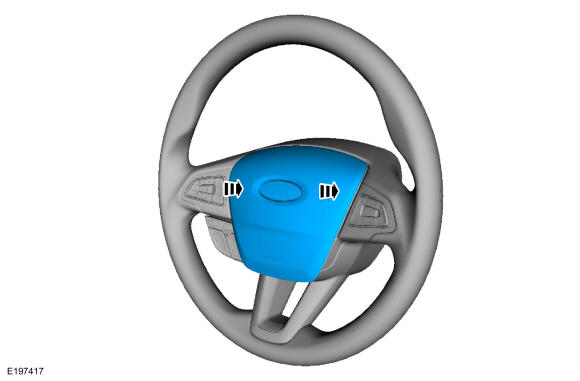

  2. NOTE: An audible click is heard when each side of the driver airbag module is pushed in and the spring clip seats behind the steering wheel retainer.

    Align the driver airbag to the steering wheel and push in, engaging the driver airbag spring clips to the steering wheel retainers.

    GFD270592Courtesy of FORD MOTOR COMPANY
  3. If the SRS was depowered, repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering  .
