Seatbelt Retractor and Pretensioner: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
-
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
If a SRS fault is present, continue to Step 2. Otherwise, turn the ignition OFF, wait at least one minute and continue to Step 3.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
- Remove the B-pillar trim panel. Refer to: B-PILLAR TRIM PANEL .

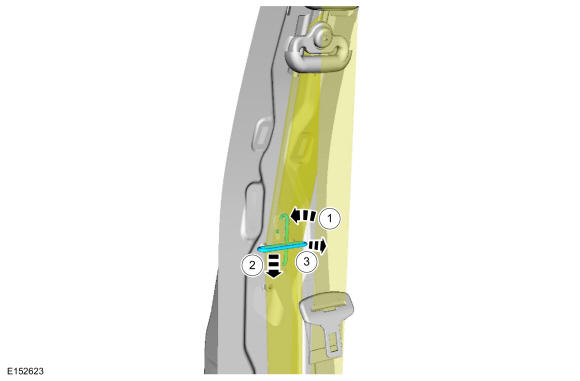

- Release the safety belt guide.
- Unhook the guide retainer.
- Slide the guide down.
- Release the guide.

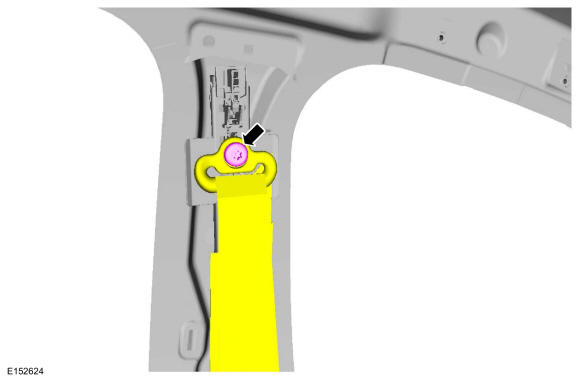

- Remove the bolt and position the safety belt aside.
Torque
: 26 lb.ft (35 Nm)

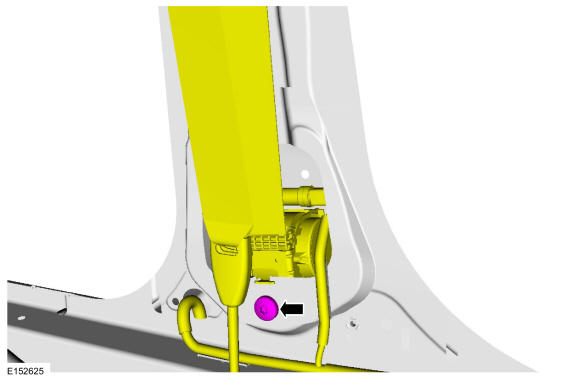

- Remove the bolt and position the safety belt retractor and pretensioner aside.
Torque
: 26 lb.ft (35 Nm)

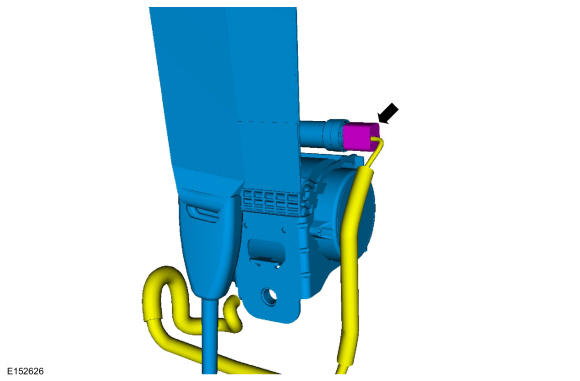

LH
- Disconnect the electrical connector and remove the safety belt retractor and pretensioner.

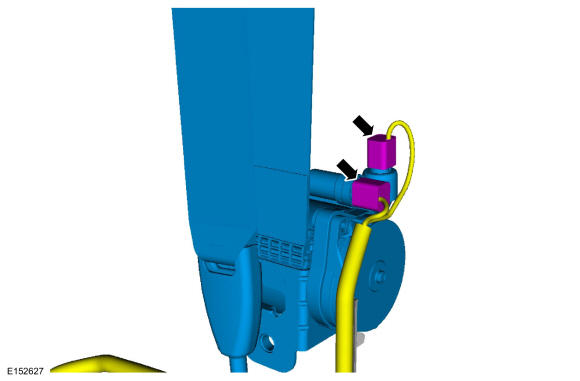

RH
- Disconnect the electrical connectors and remove the safety belt retractor and pretensioner.
