Front Seat: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, other seats similar.
NOTE:
Removal steps in this procedure may contain installation details.

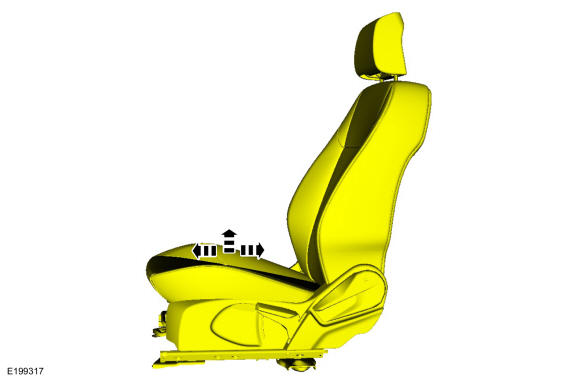

- Position the seat to access the front seat bolts.
-
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
If a SRS fault is present, continue to Step 3. Otherwise, turn the ignition OFF, wait at least one minute and continue to Step 4.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .

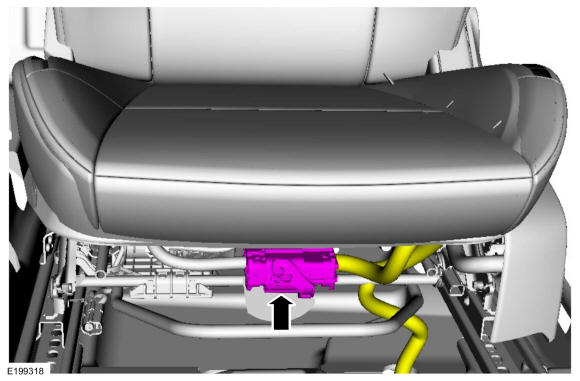

- Disconnect the seat harness electrical connector.
-
NOTE: Follow the unique instructions or graphics for this step in the installation.

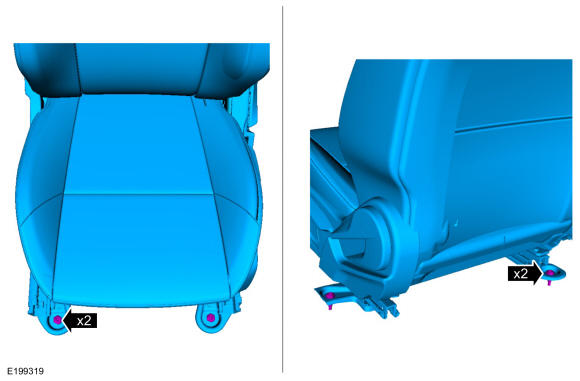

Remove the bolts and the front seat.
