Front Seat Track Motor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

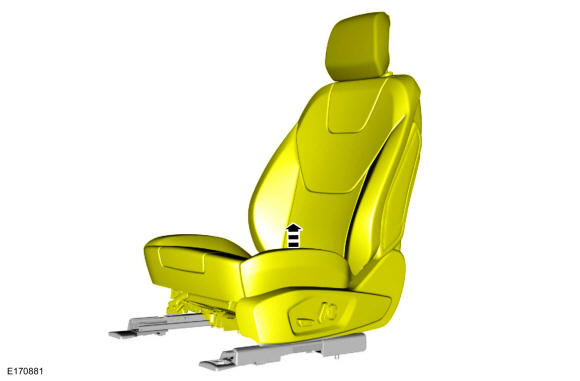

  1. Move the front seat to the full upward position.
    GFD270138Courtesy of FORD MOTOR COMPANY
  2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .

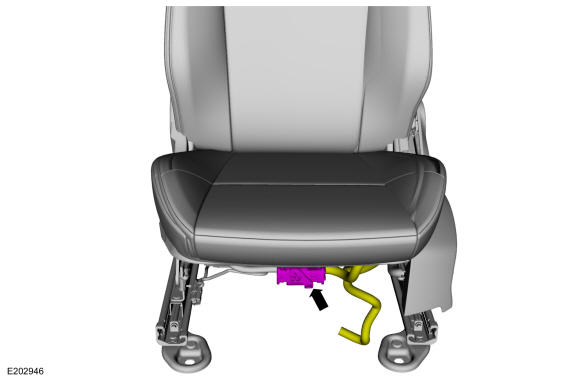

  3. Disconnect the seat harness electrical connector.
    GFD270139Courtesy of FORD MOTOR COMPANY
  4. Remove the side shield screws.
    GFD270111Courtesy of FORD MOTOR COMPANY
  5. Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD270112Courtesy of FORD MOTOR COMPANY
  6. NOTE: Seat track components are removed for clarity.

    Disconnect the seat track motor electrical connector, release the wire harness retainers and position the wire harness aside.

    GFD270140Courtesy of FORD MOTOR COMPANY
  7. NOTE: Seat track components and wiring harness are removed for clarity.

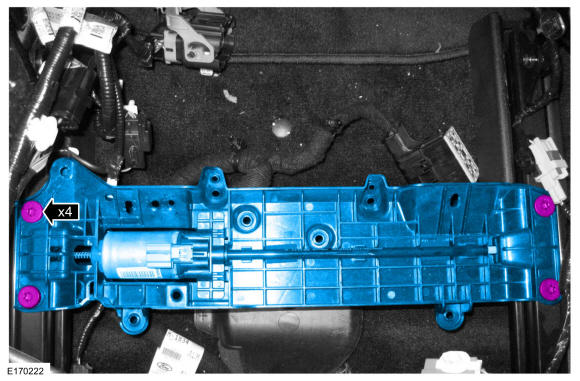

    Remove the bolts and the seat track motor.

GFD270141Courtesy of FORD MOTOR COMPANY
