System Diagram

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

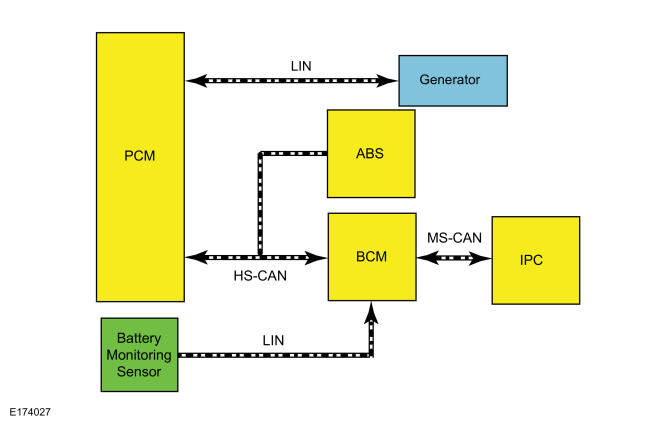

GFD269607Courtesy of FORD MOTOR COMPANY
Item Description
1 MS-CAN
2 HS-CAN
3 LIN
4 LIN
5 PCM
6 BCM
7 IPC
8 Generator
9 Battery Monitoring Sensor
10 ABS Module
