Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component Location
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

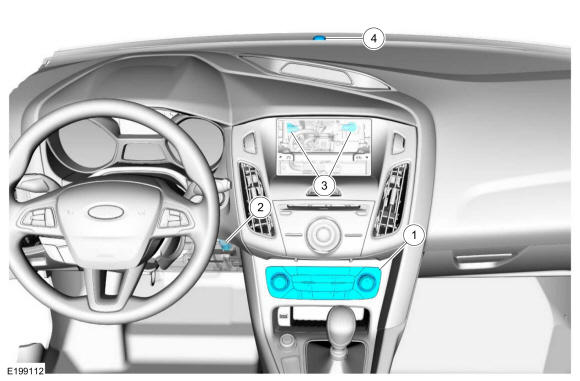

| Item | Description |
|---|---|
| 1 | HVAC Module |
| 2 | In-Vehicle Temperature Sensor |
| 3 | Center Register Air Discharge Temperature Sensors |
| 4 | Sunload Sensor |
| Item | Description |
|---|---|
| 1 | RH Exterior Mirror |
| 2 | Ambient Air Temperature Sensor |
| Item | Description |
|---|---|
| 1 | Air Inlet Duct |
| 2 | Blower Motor |
| 3 | Evaporator |
| 4 | Heater Core |

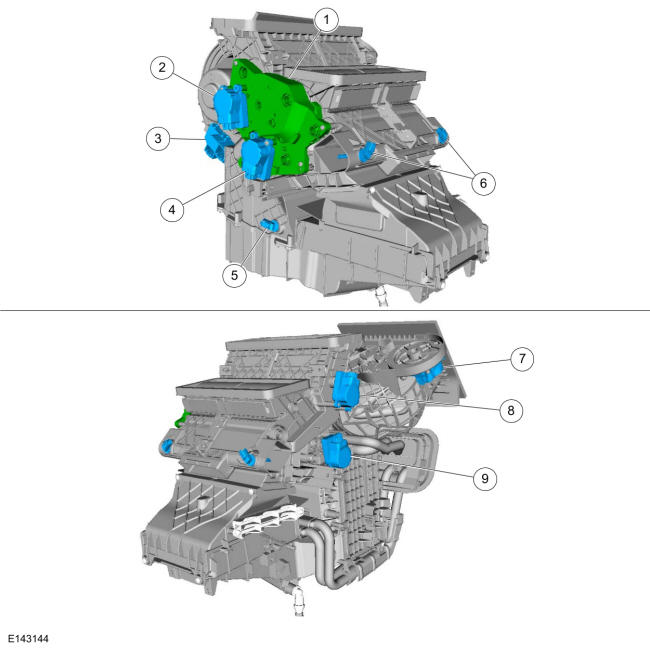

| Item | Description |
|---|---|
| 1 | Actuating Assembly |
| 2 | Footwell Vent/Duct Door Actuator |
| 3 | Blower Motor Speed Control |
| 4 | Driver Side Temperature Door Actuator |
| 5 | Evaporator Temperature Sensor |
| 6 | Footwell Air Discharge Temperature Sensor |
| 7 | Air Inlet Door Actuator |
| 8 | Defrost Vent/Register Door Actuator |
| 9 | Passenger Side Temperature Door Actuator |

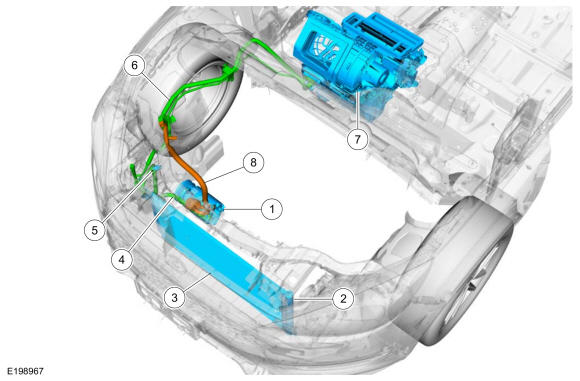

2.0L EcoBoost
| Item | Description |
|---|---|
| 1 | A/C Compressor |
| 2 | Receiver Drier |
| 3 | Condenser |
| 4 | A/C Compressor Outlet Line |
| 5 | A/C Pressure Transducer |
| 6 | Thermostatic Expansion Valve (TXV) Manifold and Tube Assembly |
| 7 | Heater Core and Evaporator Core Housing |
| 8 | A/C Compressor Inlet Line |
2.0L Duratec
| Item | Description |
|---|---|
| 1 | A/C Compressor |
| 2 | A/C Compressor Outlet Line |
| 3 | Receiver Drier (with serviceable Receiver Drier Element) |
| 4 | Condenser |
| 5 | A/C Pressure Transducer |
| 6 | Thermostatic Expansion Valve (TXV) Manifold and Tube Assembly |
| 7 | Heater Core and Evaporator Core Housing |
| 8 | A/C Compressor Inlet Line |
