Transmission Support Insulator: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery tray. Refer to: Battery Tray .
  2. Remove the wiring retainers and the nuts and remove the battery tray support bracket.
    GFD267598Courtesy of FORD MOTOR COMPANY

    3. Refer to: Engine Undershield .

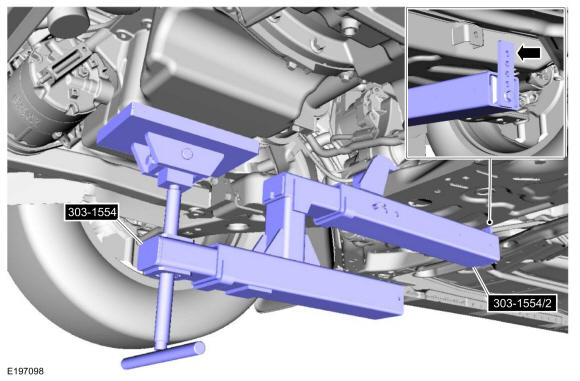

  3. NOTE: Use caution when lowering the vehicle after the special tool is installed. If the vehicle is lowered onto the special tool, damage to the special tool or the vehicle can occur.

    Install the special tool and support the engine. Use Special Service Tool: 303-1554 Engine Support Bar.

    GFD267599Courtesy of FORD MOTOR COMPANY
  4. Remove the transmission support insulator bolt and remove the transmission support insulator.
    GFD267600Courtesy of FORD MOTOR COMPANY
  5. Remove the selector lever cable bracket.
    GFD267601Courtesy of FORD MOTOR COMPANY

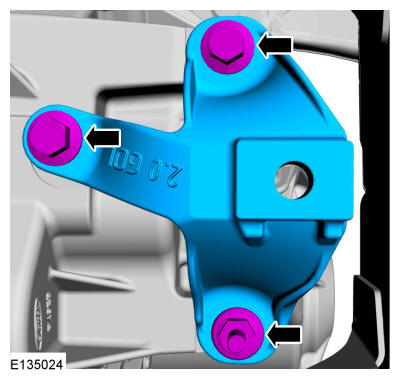

  6. Remove the transmission support insulator bracket.
GFD267602Courtesy of FORD MOTOR COMPANY
