Transmission Support Insulator: Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

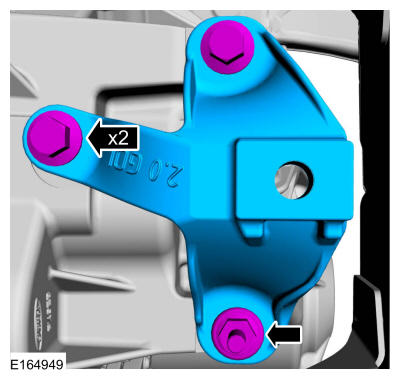

- Install the transmission support insulator bracket.
Torque: 59 lb.ft (80 Nm)

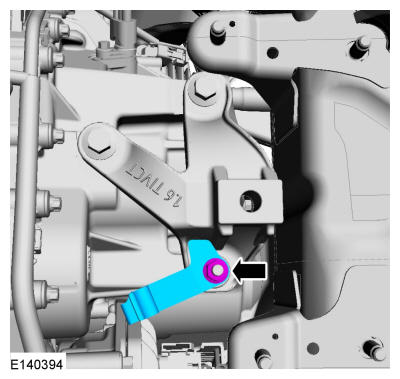

- Install the selector lever cable bracket.
Torque: 133 lb.in (15 Nm)

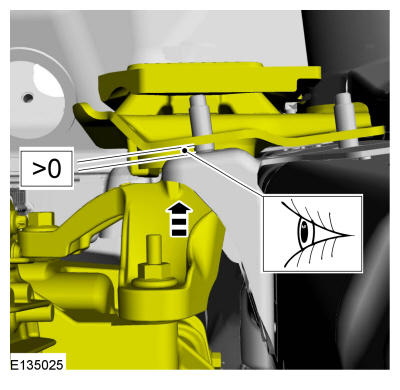

- Install the transmission support insulator and lift the transmission until the transmission support insulator bracket contacts the transmission support insulator.

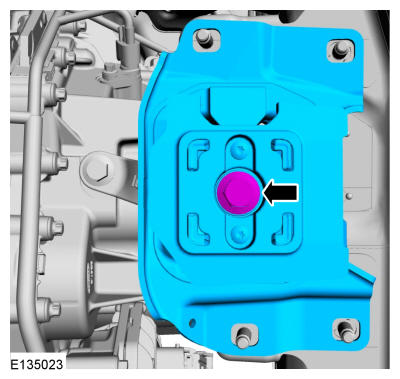

- Install the transmission support insulator bolt.
Torque: 109 lb.ft (148 Nm)

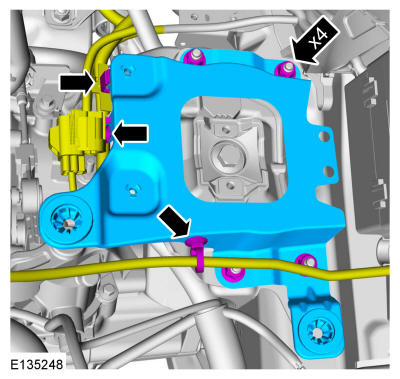

- Install the battery tray support bracket and the nuts. Connect the wiring retainers.
Torque: 35 lb.ft (48 Nm)
- Install the battery tray. Refer to: Battery Tray .
Refer to: Engine Undershield .
