Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Place the selector lever in DRIVE.

Courtesy of FORD MOTOR COMPANY

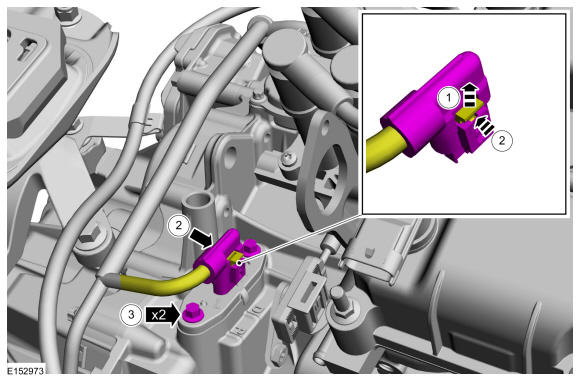

Unlock and disconnect the TR sensor electrical connector. Remove the bolts.

Courtesy of FORD MOTOR COMPANY

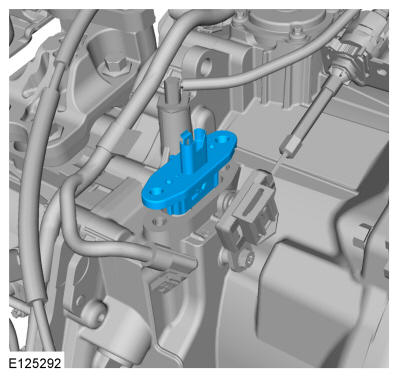

Remove the TR sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of corrosion and debris.

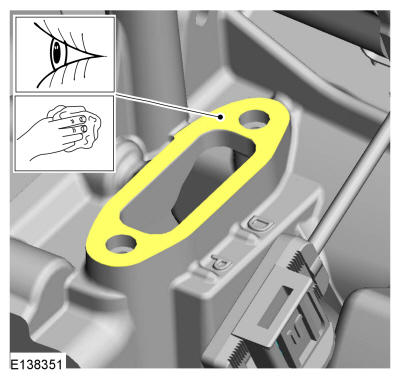

Clean and inspect the TR sensor sealing surface for corrosion and debris.

Courtesy of FORD MOTOR COMPANY
