Selector Shaft Seal: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take extra care not to damage the seal.

NOTE: Make sure the component is clean and free of foreign material.

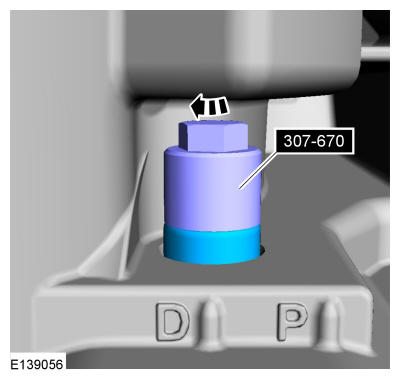

Using the special tool, install a new shift lever seal. Use Special Service Tool: 307-670 Remover/Installer, Shift Lever Seal.

Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

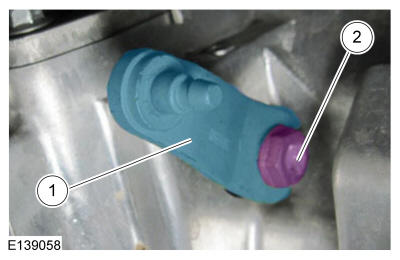

1. Install the manual control lever.
2. NOTE: Make sure a new bolt is installed.

  Install new manual control lever bolt.

  Torque: 19 lb.ft (26 Nm)
Courtesy of FORD MOTOR COMPANY
1. NOTE: Make sure that a new component is installed.

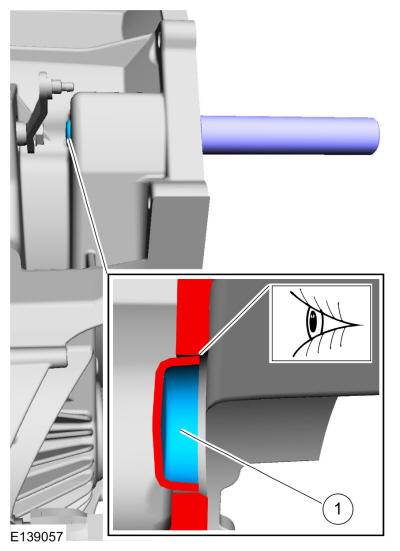

  Using a punch, install a new clutch housing plug. Install the plug so it is level with the chamfer of the outer diameter of the plug hole.
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission - 2.0L Duratec-HE (125kW/170PS) - MI4 .
