Roll Restrictor RH: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

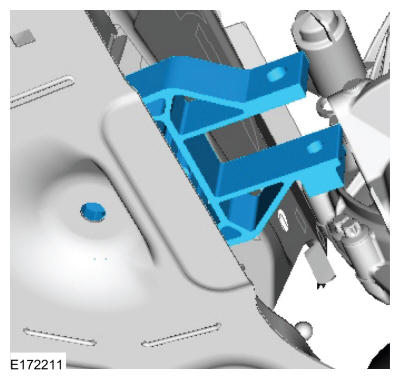

Position the roll restrictor.

Courtesy of FORD MOTOR COMPANY

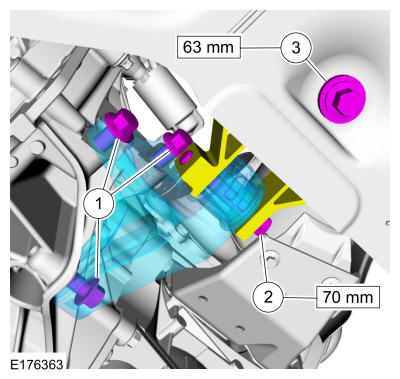

NOTE: Note the length of the 2 roll restrictor bolts and be sure not to install the longer bolt into the subframe. If the longer bolt is installed in the subframe it can contact the steering gear causing NVH concerns.
1. Install the roll Restrictor bolts to transmission bracket.
  Torque: 59 lb.ft (80 Nm)
2. Install the roll Restrictor bracket bolt.
  Torque: 59 lb.ft (80 Nm)
3. Install the side engine mounting Restrictor bolt.
  Torque: 92 lb.ft (125 Nm)
Courtesy of FORD MOTOR COMPANY
Position the underbody shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Position the shield reinforcement and install the retainers.
