Output Shaft Speed (OSS) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the retainers and the shield reinforcement.
- Remove the retainers and the underbody shield.
-
NOTE: Take extra care not to damage the wiring harnesses.

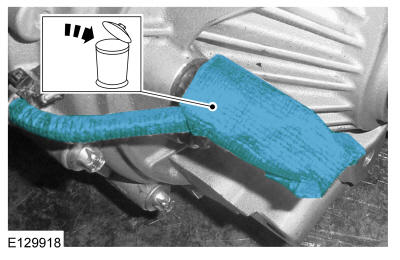

Remove and discard the tape from the electrical wiring harness.

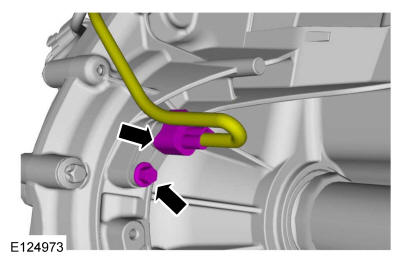

- Disconnect the electrical wiring harness and remove the OSS sensor bolt.
Torque: 89 lb.in (10 Nm)

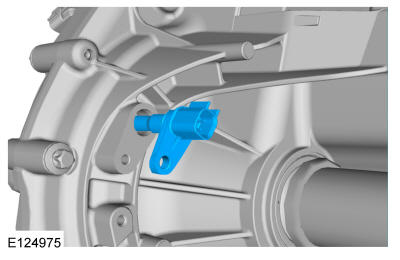

- Remove the OSS sensor.
- Remove and discard the OSS sensor O-ring seal.
-

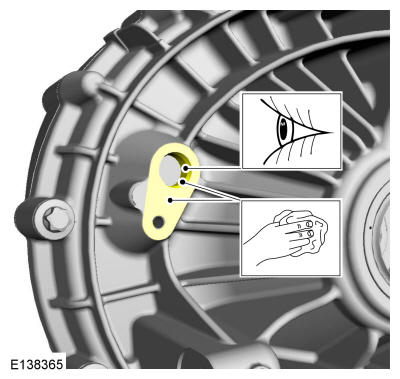

NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.
Clean and inspect the OSS sensor bore surface.
