Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
    1. Clean the OSS sensor.
    2. NOTE: Make sure that only a new component is installed.

      Lubricate the OSS sensor with clean transmission oil.

      Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

    GFD267566Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure that the surface is clean and free of foreign material before taping around the component.

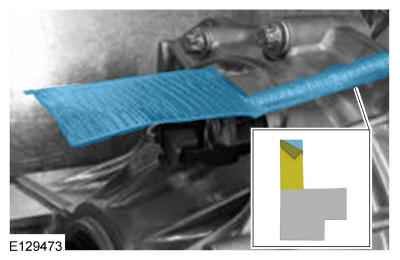

    Wrap the insulation tape around the OSS sensor electrical wiring harness.

    GFD267567Courtesy of FORD MOTOR COMPANY

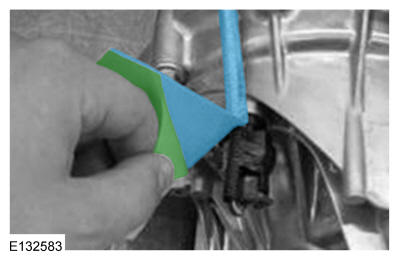

  3. Wrap the insulation tape around the electrical wiring harness.
    GFD267568Courtesy of FORD MOTOR COMPANY

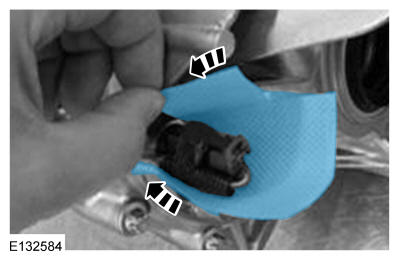

  4. Wrap the insulation tape around the OSS sensor.
    GFD267569Courtesy of FORD MOTOR COMPANY
  5. Wrap the insulation tape around the OSS sensor electrical wiring harness.
    GFD267570Courtesy of FORD MOTOR COMPANY

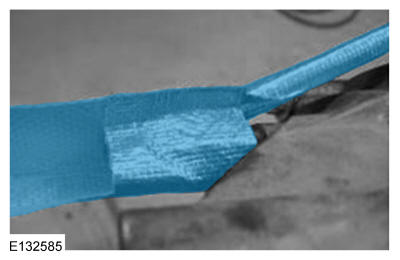

  6. Wrap the insulation tape around the OSS sensor electrical wiring harness.
    GFD267571Courtesy of FORD MOTOR COMPANY

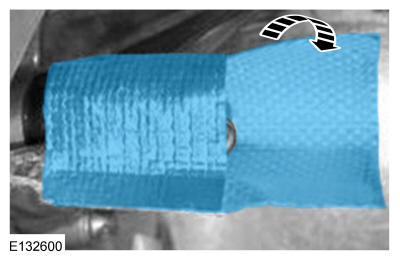

  7. Wrap the insulation tape around the OSS sensor electrical wiring harness.
    GFD267572Courtesy of FORD MOTOR COMPANY

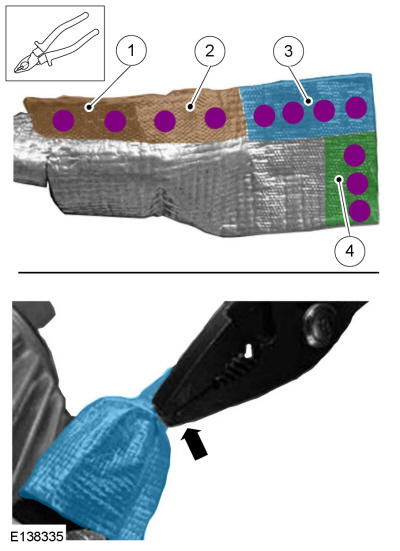

  8. Using pliers crimp the edge of the tape in the sequence shown.
    GFD267573Courtesy of FORD MOTOR COMPANY
  9. Position the underbody shield and install the retainers.
    GFD266848Courtesy of FORD MOTOR COMPANY
  10. Position the shield reinforcement and install the retainers.
GFD264855Courtesy of FORD MOTOR COMPANY
