Input Shaft Seal: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch and damper unit. Refer to: Clutch and Damper Unit .

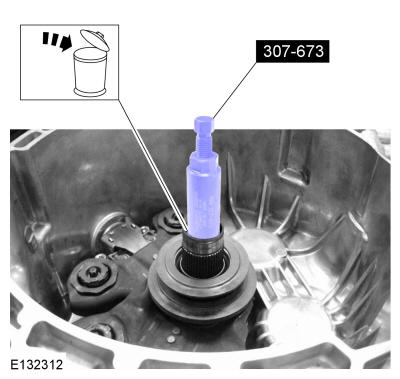

  2. Using the special tools, remove and discard the hollow input shaft seal. Use Special Service Tool: 307-673 Remover, Outer Input Shaft Seal.
    GFD267543Courtesy of FORD MOTOR COMPANY
  3. Remove the clutch actuator. Refer to: Clutch Actuator .
  4. Remove the bolts and the guide tube.
    GFD267544Courtesy of FORD MOTOR COMPANY

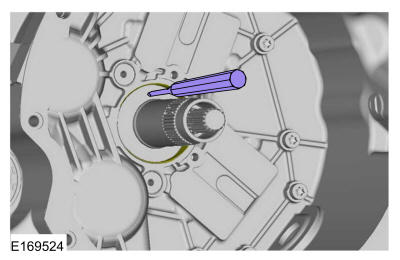

  5. NOTE: Take extra care not to damage the bearing.

    Using a small punch, poke a small hole in the seal. Use the General Equipment: Punch

    GFD267545Courtesy of FORD MOTOR COMPANY

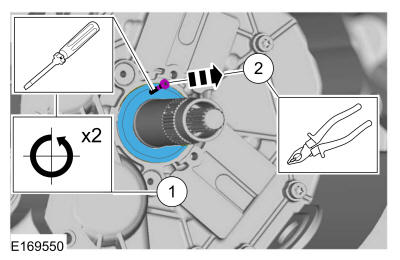

    1. 2, 5 x 15 mm self-tapping screw. Rotate the screw by two full threads. Use the General Equipment: Flat Headed Screw Driver
    2. Remove the input shaft seal and remove the self-tapping screw. Use the General Equipment: Locking Pliers
    GFD267546Courtesy of FORD MOTOR COMPANY

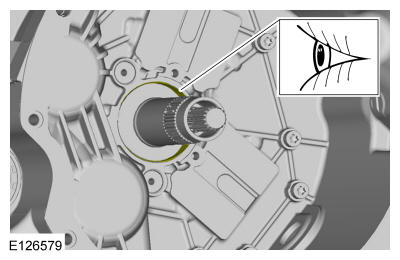

  7. Inspect the input shaft case seal seat for any damage.
    GFD267547Courtesy of FORD MOTOR COMPANY

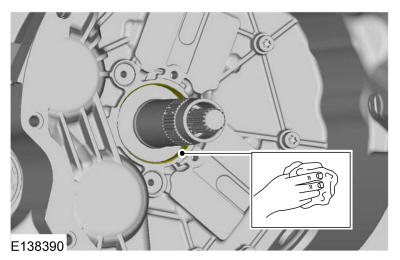

  8. Clean the input shaft case seal seat.
GFD267548Courtesy of FORD MOTOR COMPANY
