Clutch Actuator: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch and damper unit. Refer to: Clutch and Damper Unit .

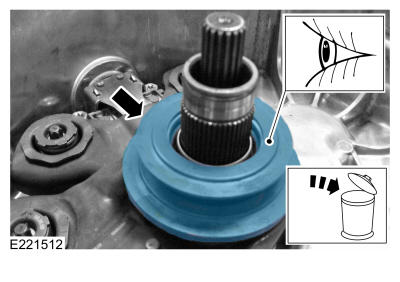

  2. NOTE: Note the position of the components before removal.
    NOTE: A small amount of adhesive is applied between the Z-washer and the bearing surface to aid factory assembly. Do not add adhesive for service repairs.

    Remove the washer. Inspect the washer for damage.

    GFD267452Courtesy of FORD MOTOR COMPANY

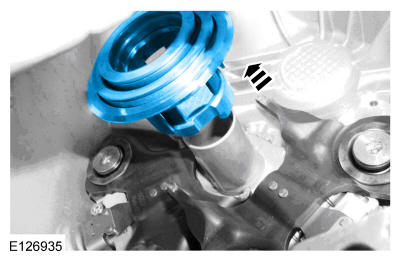

  3. NOTE: Note the position of the component before removal.

    Remove the engagement bearing.

    GFD267453Courtesy of FORD MOTOR COMPANY

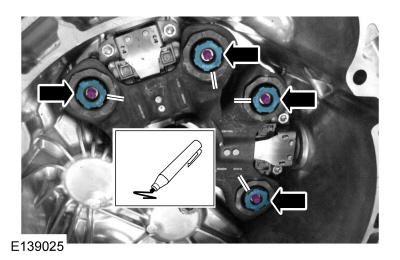

  4. NOTE: Note the position of the components before removal.

    Remove the spring retainer bolts from the spring retainers and remove the spring retainers.

    GFD267454Courtesy of FORD MOTOR COMPANY
  5. Remove the clutch actuator lever bolts.
    GFD267455Courtesy of FORD MOTOR COMPANY

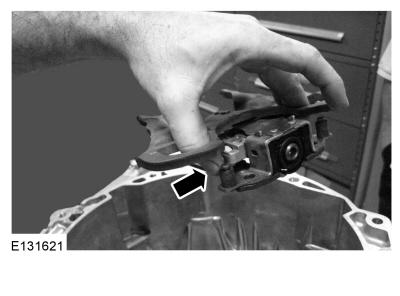

  6. NOTE: Take extra care when handling the component.

    Remove the clutch actuator levers.

GFD267456Courtesy of FORD MOTOR COMPANY
