Clutch Actuator: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

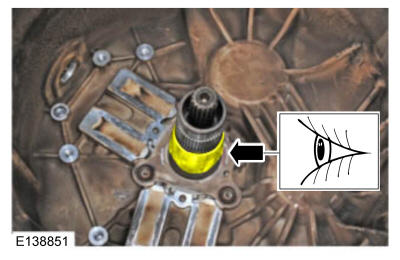

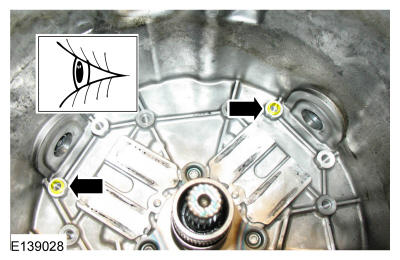

Inspect the guide tube for wear or damage.

Courtesy of FORD MOTOR COMPANY
Inspect the clutch actuator lever bushings for wear or damage and install new bushings if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care when handling the component.

NOTE: Make sure that the component is clean and free of foreign material.

NOTE: Install a new component if it is damaged or has excessive wear.

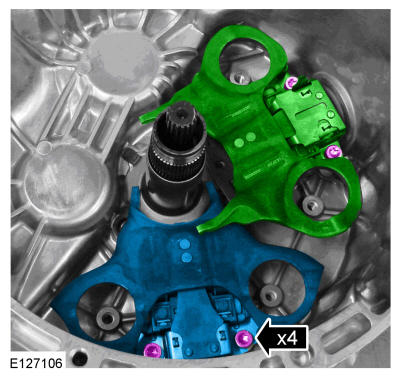

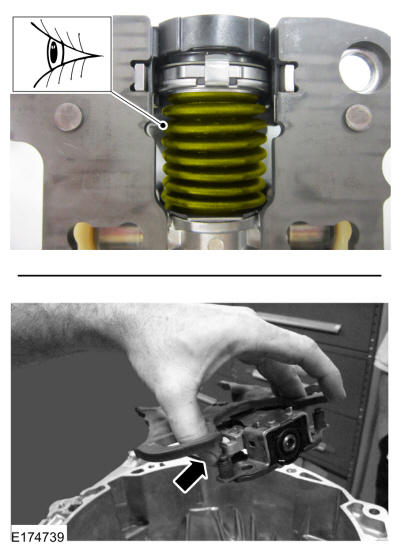

Inspect the clutch actuator lever boot for damage and replace the clutch actuator levers if necessary. Install the clutch actuator levers.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

NOTE: Only tighten the bolts finger tight at this stage.

Install the clutch actuator lever bolts finger tight.

Courtesy of FORD MOTOR COMPANY

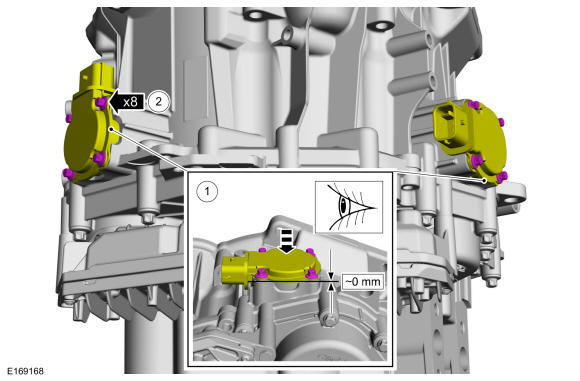

Install the clutch actuator motors in the transmission case and make sure they rest against the case all the way.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

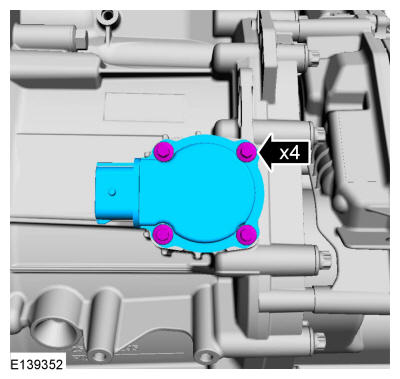

Install the clutch actuator motor bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Tighten the clutch actuator lever bolts.
Torque: 168 lb.in (19 Nm)

Courtesy of FORD MOTOR COMPANY

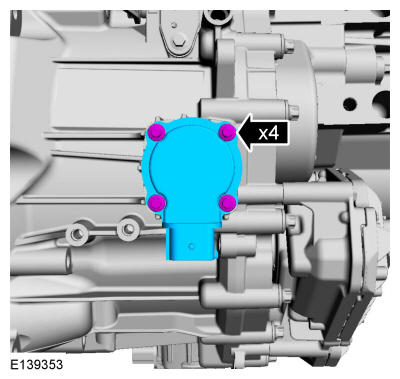

Remove the clutch actuator motor.

Courtesy of FORD MOTOR COMPANY
Remove the clutch actuator motor.

Courtesy of FORD MOTOR COMPANY

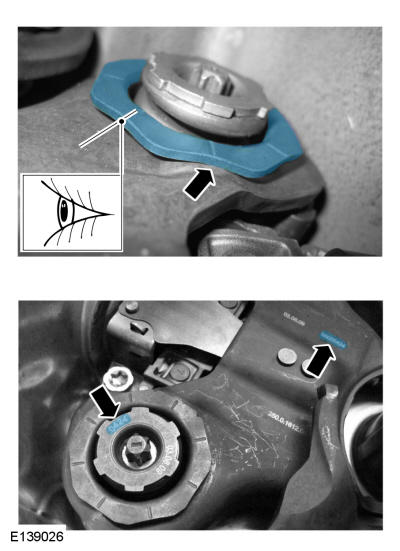

NOTE: Make sure the serial number on the spring retainer matches the serial number on the actuator lever. If reusing the spring retainers and actuator levers use the marks made during removal for assembly.

NOTE: The spring may rotate in the seat, this is normal and does not indicate damage or wear.

NOTE: Only tighten bolts finger tight at this stage.

Install the spring retainers and spring retainer bolts.

Courtesy of FORD MOTOR COMPANY

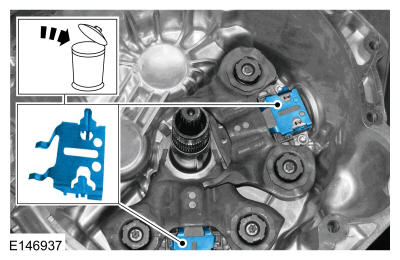

NOTE: This step is necessary only if new clutch actuator levers are installed.

Remove and discard the clutch actuator lever locks.

Courtesy of FORD MOTOR COMPANY

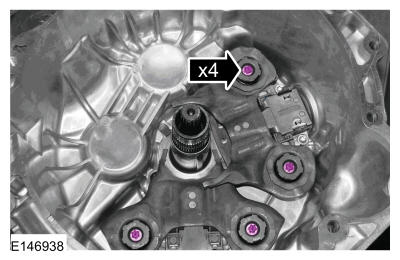

Tighten the clutch actuator lever bolts.
Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the sealed bearing, discard if damaged, worn or leaking blue grease.

NOTE: The component can only be installed in 1 position.

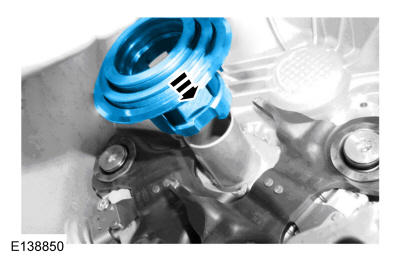

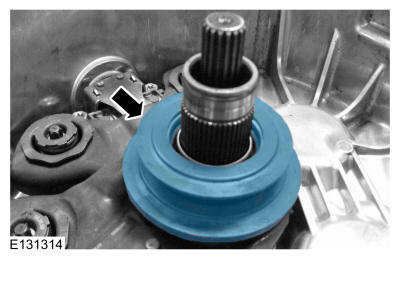

Install the engagement bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: The component can only be installed in 1 position.

Install the washer.

Courtesy of FORD MOTOR COMPANY
Install the clutch and damper unit. Refer to: Clutch and Damper Unit .
