Clutch Actuator Motor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Clutch Actuator Motor A

Refer to: Air Cleaner . Refer to: Battery Tray .

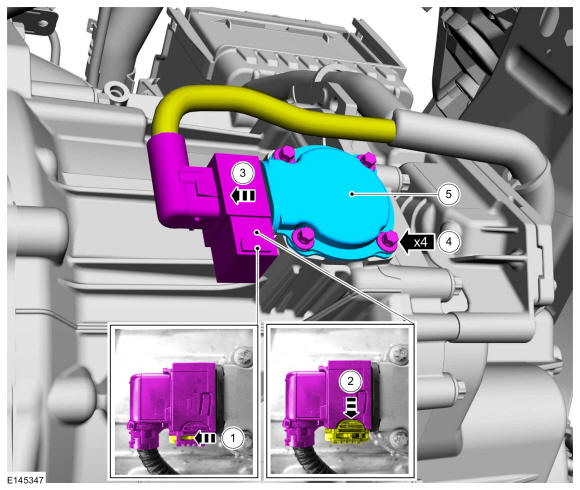

1. Unlock the electrical connector.
2. Push the electrical connector lock outward.
3. NOTE: Take extra care not to damage the wiring harnesses.

  NOTE: Make sure the component terminals are not bent or damaged.

  Disconnect the electrical connector.
4. Remove the bolts.
5. Remove the clutch actuator motor.
Courtesy of FORD MOTOR COMPANY

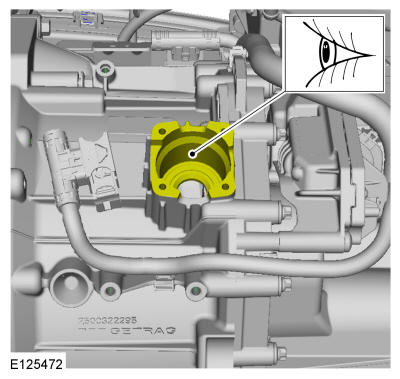

NOTE: Make sure the mating faces are clean and free of corrosion and foreign material.

Inspect the transmission housing surface for wear or damage.

Courtesy of FORD MOTOR COMPANY

Clutch Actuator Motor B
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the retainers and the shield reinforcement.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

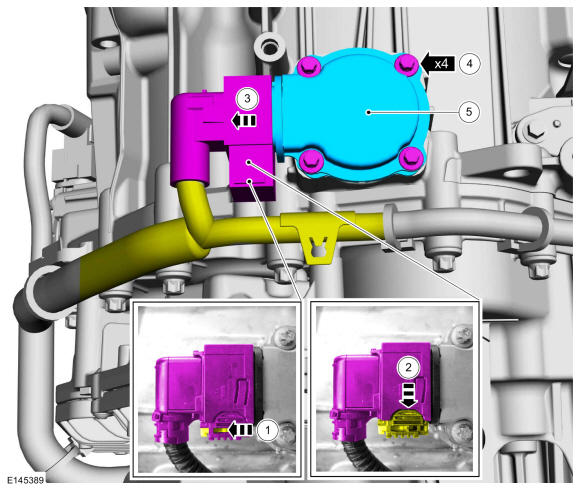

1. Unlock the electrical connector.
2. Push the electrical connector lock outward.
3. Disconnect the electrical connector.
4. Remove the bolts.
5. Remove the clutch actuator motor.
Courtesy of FORD MOTOR COMPANY

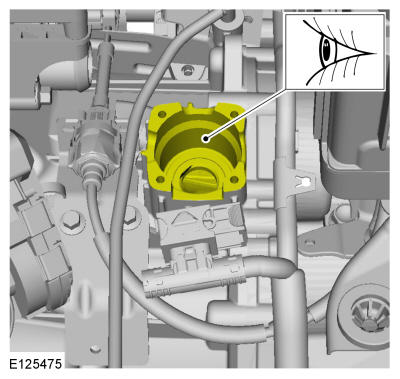

NOTE: Make sure the mating faces are clean and free of corrosion and foreign material.

Inspect the transmission housing surface for wear or damage.

Courtesy of FORD MOTOR COMPANY
