Clutch Actuator Motor: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Clutch Actuator Motor A and B

1. Clean the clutch actuator motor.

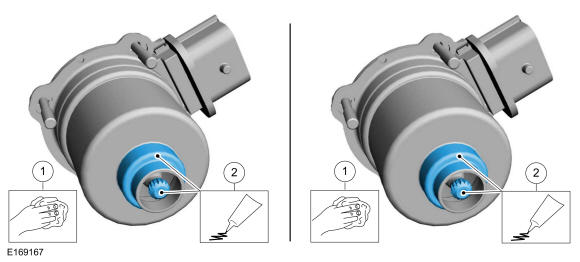

2. Apply High Temperature Nickel Anti-Seize Lubricant to both clutch actuator motor surfaces where indicated.
  Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Courtesy of FORD MOTOR COMPANY

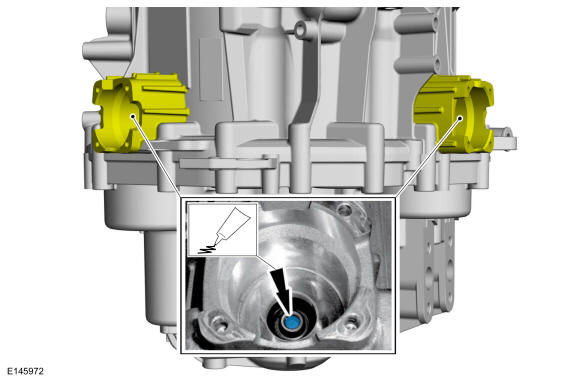

Apply High Temperature Nickel Anti-Seize Lubricant to the transmission housing surfaces where indicated.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Courtesy of FORD MOTOR COMPANY

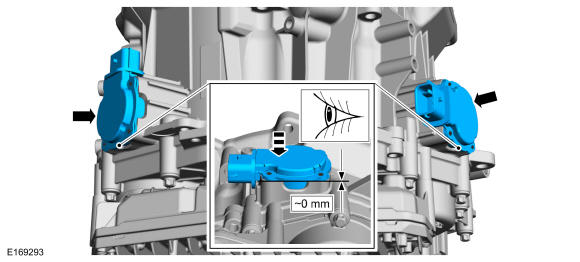

Install the clutch actuator motors in the transmission case and make sure they rest against the case all the way.

Courtesy of FORD MOTOR COMPANY

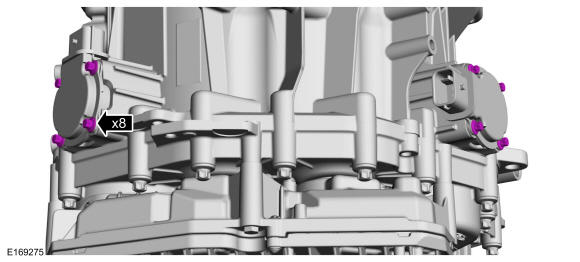

Install the clutch actuator motor bolts.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the wiring harnesses.

NOTE: Make sure the component terminals are not bent or damaged.

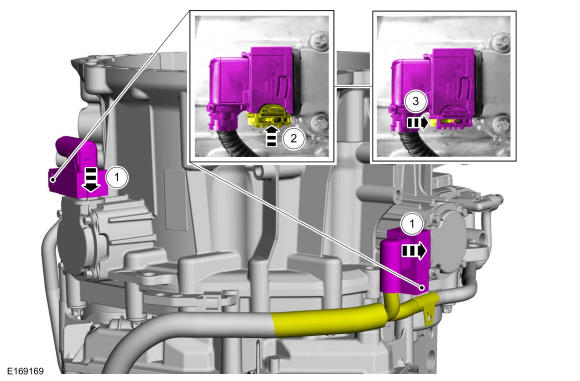

1. Reconnect the clutch actuator motor electrical connector.
2. Push the electrical connector lock.
3. Push the electrical connector lock.
Courtesy of FORD MOTOR COMPANY

Clutch Actuator Motor B
Position the underbody shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Position the shield reinforcement and install the retainers.

Courtesy of FORD MOTOR COMPANY

Clutch Actuator Motor A
Refer to: Air Cleaner . Refer to: Battery Tray .
