2nd-6th Gear Synchronizer: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

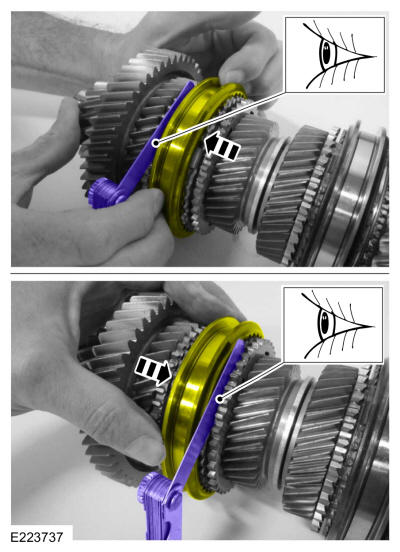

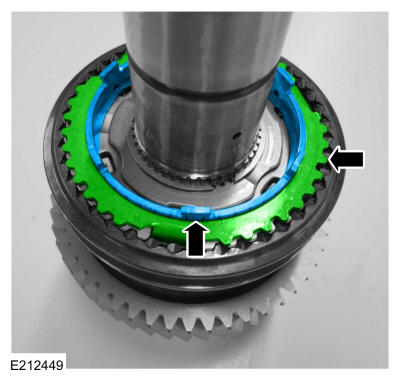

- Compare the synchronizer friction ring clearance measured in transmission disassembly to the specification. If the clearance is not within specification, install a new synchronizer assembly. Refer to: Specifications .
Use the General Equipment: Feeler Gauge

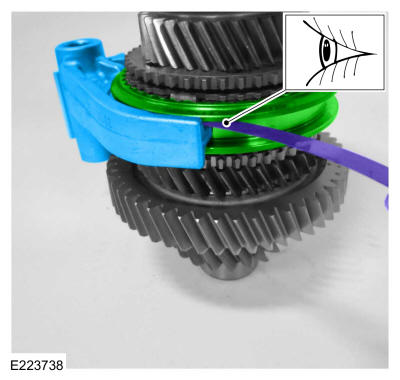

- Compare the shift fork hub sleeve clearance measured in transmission disassembly to the specification. If the clearance is not within specification, install a new synchronizer assembly and a new shift fork. Refer to: Specifications .
Use the General Equipment: Feeler Gauge
- Remove the 1st-5th Gear Synchronizer. Refer to: 1st-5th Gear Synchronizer .

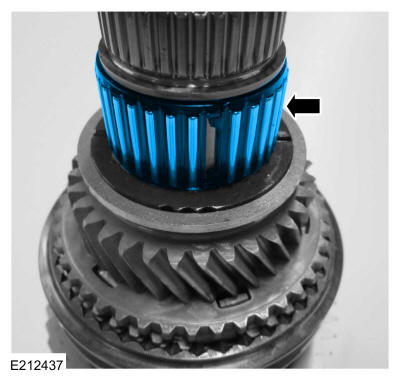

- Remove the 5th gear roller bearing.

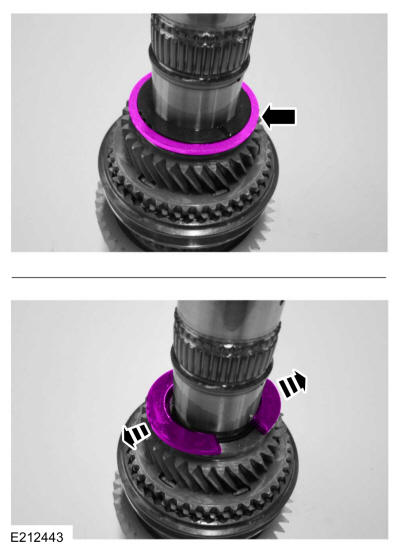

- Remove the 6th gear retainer and split washer.

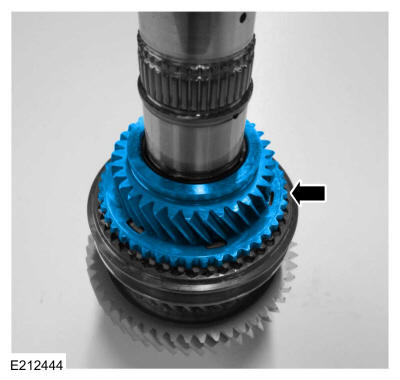

- Remove 6th gear.

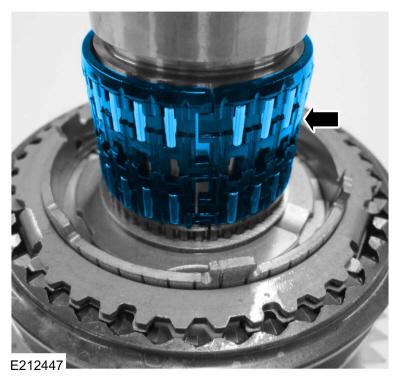

- Remove the 6th gear bearing.
- Remove the 6th gear friction rings.

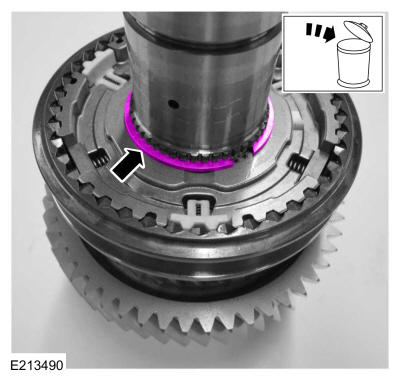

- Remove and discard the 2-6 synchronizer snap ring.

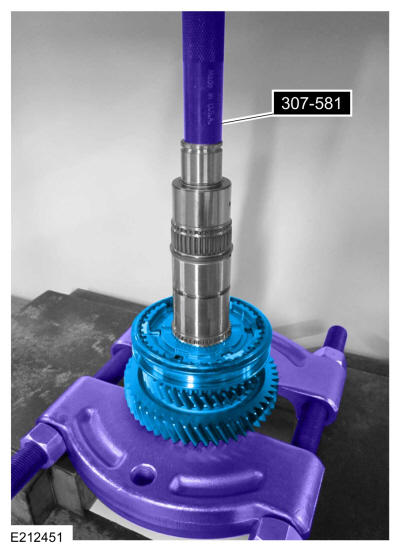

- Remove the 2-6 synchronizer hub and collar assembly and 2nd-reverse gear. Use Special Service Tool: 307-581 Manual lever seal installer. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
- Disassemble the 2-6 synchronizer hub and collar assembly, 3-piece friction ring assembly and the face bearing from the 2nd-reverse gear assembly.

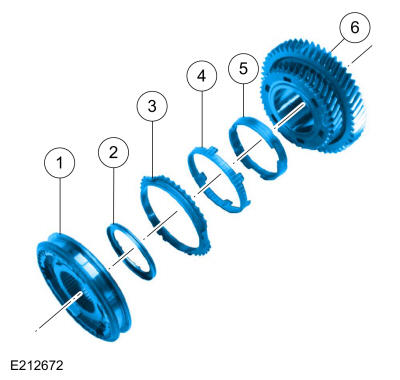

- 2-6 synchronizer hub and collar assembly
- Face bearing
- Outer friction ring
- Middle friction ring
- Inner friction ring
- 2nd-reverse gear

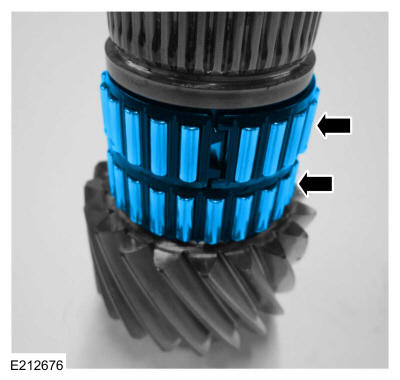

- Remove the dual roller bearing.
