1st-5th Gear Synchronizer: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble the transmission. Refer to: Transmission .

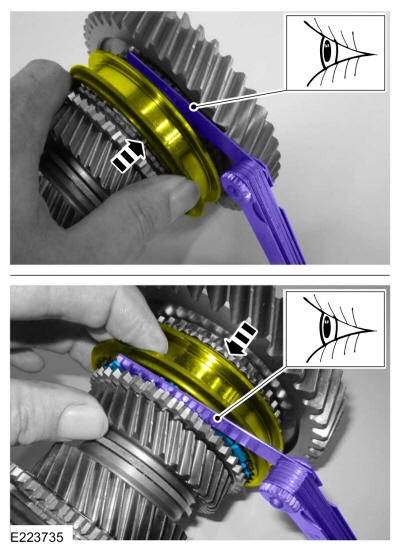

- Compare the synchronizer friction ring clearance measured in transmission disassembly to the specification. If the clearance is not within specification, install a new synchronizer assembly. Refer to: Specifications .
Use the General Equipment: Feeler Gauge

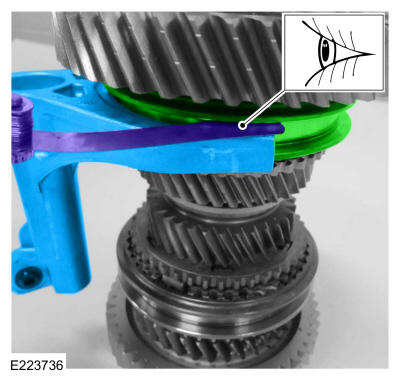

- Compare the shift fork hub sleeve clearance measured in transmission disassembly to the specification. If the clearance is not within specification, install a new synchronizer assembly and a new shift fork. Refer to: Specifications .
Use the General Equipment: Feeler Gauge

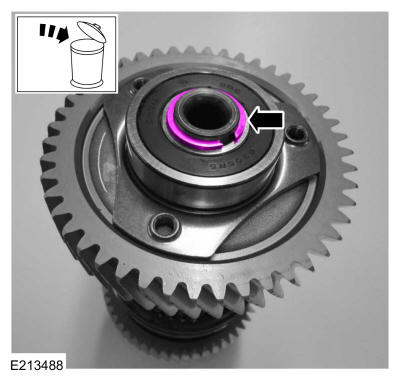

- Remove and discard the rear bearing snap ring.

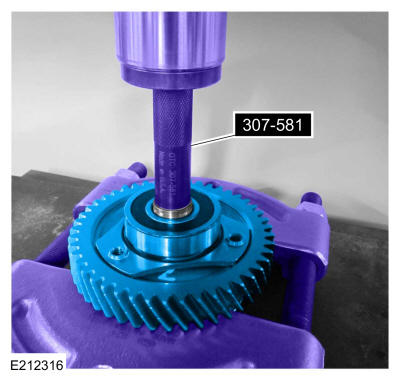

- Using the special tool, remove the rear bearing and 1st gear. Use Special Service Tool: 307-581 Manual lever seal installer. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press

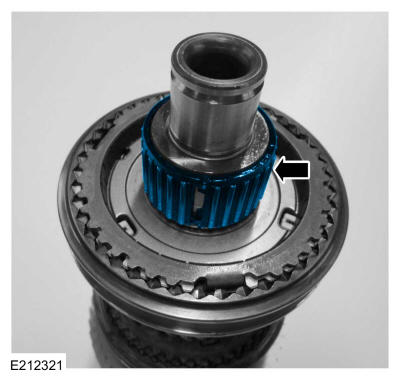

- Remove the 1st gear roller bearing.

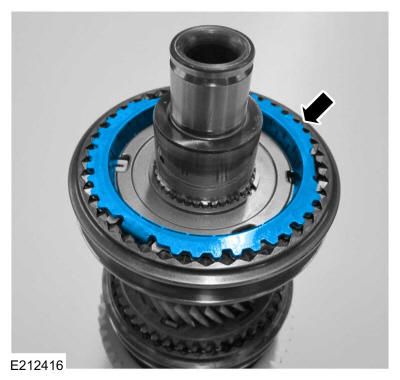

- Remove the 1st gear friction ring.

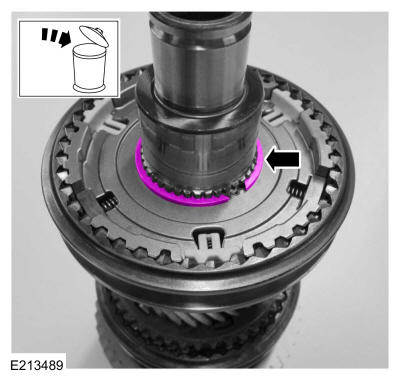

- Remove and discard the 1-5 synchronizer snap ring.

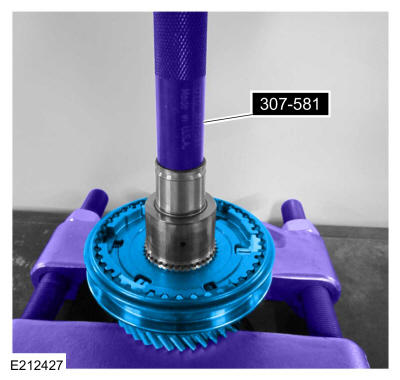

- Using the special tool, remove the 1-5 synchronizer hub and collar assembly and 5th gear. Use Special Service Tool: 307-581 Manual lever seal installer. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
