Transmission Fluid Level Check
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Fluid Suction Gun |
|---|
| Ball End Hex Bit |
Materials
| Name | Specification |
|---|---|
| Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC |
WSS-M2C200-D2 |
Check
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped.
- Remove the retainers and the shield reinforcement.
- Remove the retainers and the underbody shield.

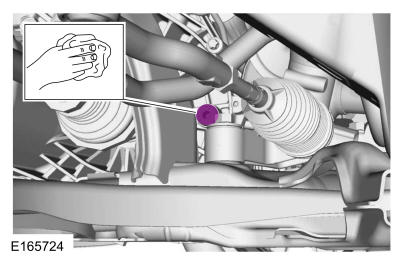

- Clean and remove the transmission fluid fill port plug. Use the General Equipment: Ball End Hex Bit
-
NOTE: Do not overfill the transmission. This causes transmission fluid to be forced out of the case.
Add transmission fluid until the oil runs out of the fill port in a continuous stream. The transmission is full when the oil flow from the fill port has slowed to a broken stream or dripping. Use the General Equipment: Fluid Suction Gun
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
-
NOTE: The O-ring seal is to be reused unless damaged.

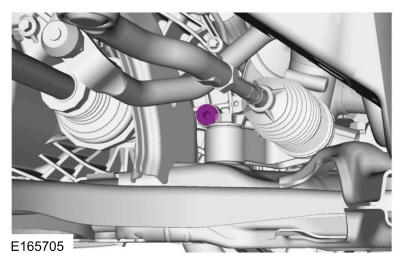

Install the transmission fluid fill port plug with O-ring seal. Use the General Equipment: Ball End Hex Bit
Torque: 32 lb.ft (43 Nm)
- If equipped.
- Install the retainers and the shield reinforcement.
- Install the retainers and the underbody shield.
