Transmission Case: Disassembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Health and Safety Precautions .

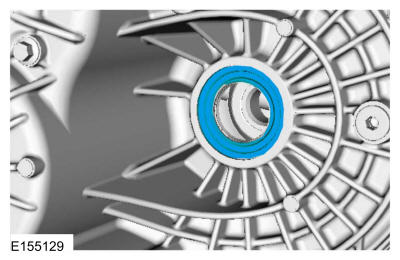

  2. Remove the LH halfshaft seal.
    GFD267763Courtesy of FORD MOTOR COMPANY

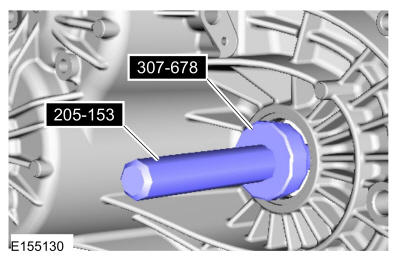

  3. Remove the LH differential bearing cup. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-678 Remover, Bearing Cone.
    GFD267764Courtesy of FORD MOTOR COMPANY
  4. NOTE: This step only applies to transmissions built after April-2013.

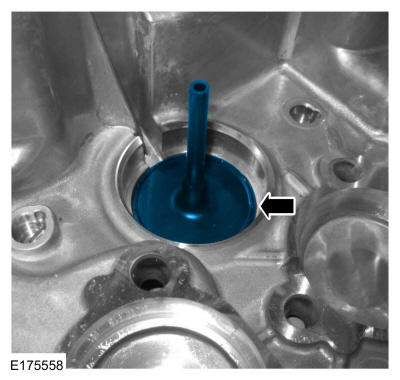

    Remove the oil spout.

GFD267765Courtesy of FORD MOTOR COMPANY
