Input Shaft: Disassembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the input shaft bearings.
    GFD267758Courtesy of FORD MOTOR COMPANY

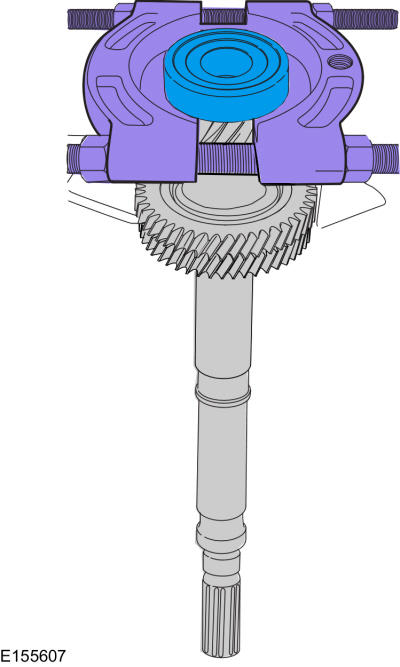

  2. Using special general equipment, remove the input shaft bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
GFD267759Courtesy of FORD MOTOR COMPANY
