Input Shaft: Assembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the inner input shaft for wear or damage, replace as needed.

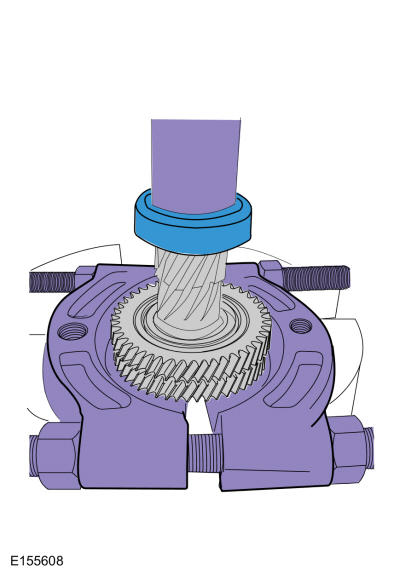

  2. Using the general equipment, carefully press the bearing on the input shaft. Use the General Equipment: Bearing Separator. Use the General Equipment: Hydraulic Press
    GFD267760Courtesy of FORD MOTOR COMPANY

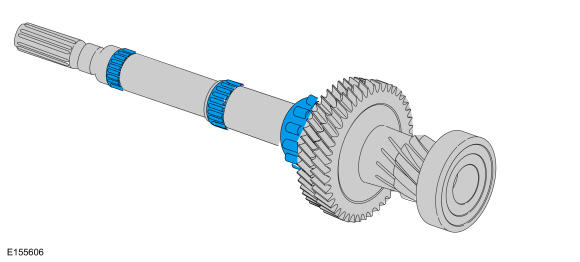

  3. Install the bearings on the input shaft.
GFD267758Courtesy of FORD MOTOR COMPANY
