Disassembly And Assembly Of Subassemblies: Differential: Assembly
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect differential parts for damage or wear. Repair or replace as needed.
- Install the differential ring gear onto the differential case.

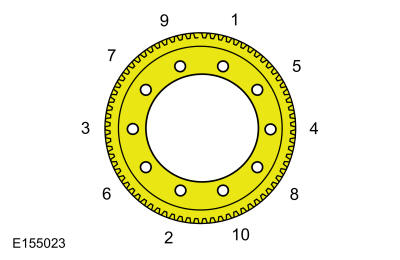

- Install the new differential ring gear bolts. Tighten the differential ring gear bolts in the sequence shown.
Torque: 63 lb.ft (85 Nm)
-
NOTE: Make sure the differential impulse ring is fully seated and flush on the differential.
Slightly heat the differential impulse ring. Install it onto the differential assembly. Use Special Service Tool: 300-MASHG501AE 500-750 Degree Heat Gun.
- Using special tool, install the differential thrust bearing. Use Special Service Tool: 205-206 (T83T-4221-A) Installer, Differential Bearing, 205-153 (T80T-4000-W) Handle.
