Clutch Housing: Disassembly
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

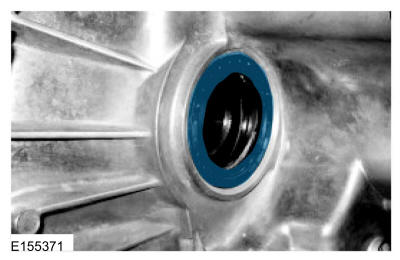

- Remove the halfshaft seal.
-
NOTE: The lube feed tubes will need to be broken to remove the bearings.

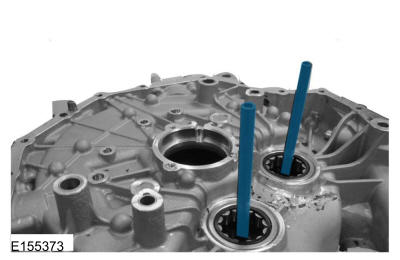

Break the lube feed tubes off the clutch housing output shaft bearings and discard.
-
NOTE: If the clutch housing output shaft bearing is broken, use the next size larger special tool.

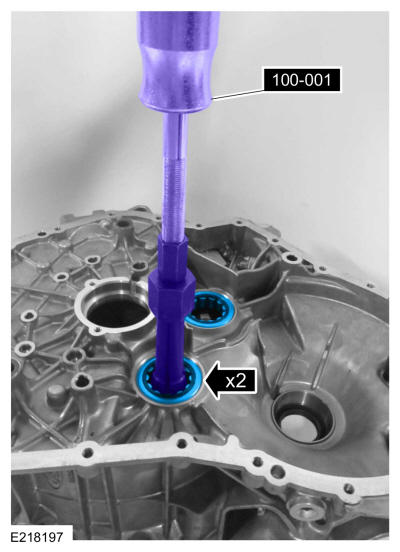

Using the special tool, remove the clutch housing output shaft bearings. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer, 303-D022 (D80L-100-T) Collet, 1 1/4 to 1 1/2, 303-D012 (D80L-100-H) Actuator Pin.

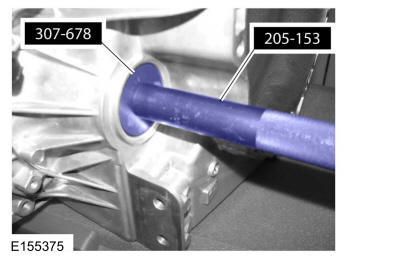

- Using the special tools, remove the clutch housing differential bearing race and shim. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-678 Remover, Bearing Cone.
