Clutch Housing: Assembly
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If new differential bearings, differential, clutch housing or transmission case are installed refer to the differential shim selection.

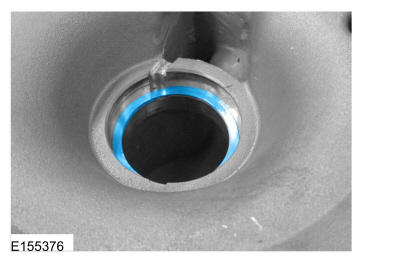

Install the clutch housing differential bearing shim. Refer to: Transmission .

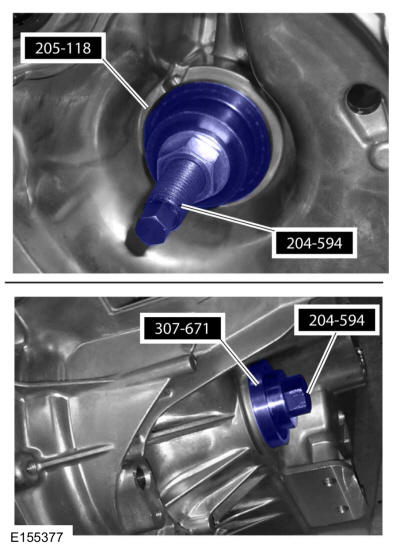

- Using the special tools, install the clutch housing differential bearing race. Use Special Service Tool: 205-118 (T77F-4222-A) Differential bearing cap installer, 307-671 Installer, Axle Seal, 204-594 Forcing screw.
-
NOTE: The clutch housing output shaft bearing 1 is shown, the clutch housing output shaft bearing 2 is similar.

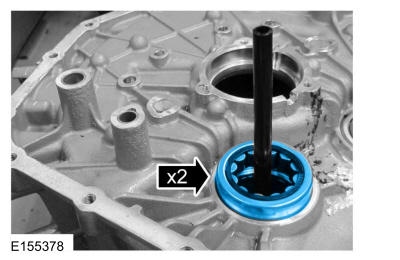

Install the new lube feed tubes and position the clutch housing output shaft bearings into the clutch housing.
-
NOTE: The clutch housing output shaft bearing 1 is shown, the clutch housing output shaft bearing 2 is similar.

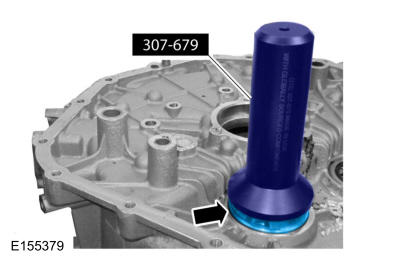

Using the special tool, install the clutch housing output shaft bearings. Use Special Service Tool: 307-679 Installer, Countershaft Needle Bearing.

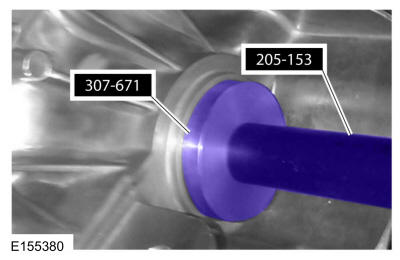

- Using the special tools, install the halfshaft seal. Use Special Service Tool: 307-671 Installer, Axle Seal, 205-153 (T80T-4000-W) Handle.
