Parking lock
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

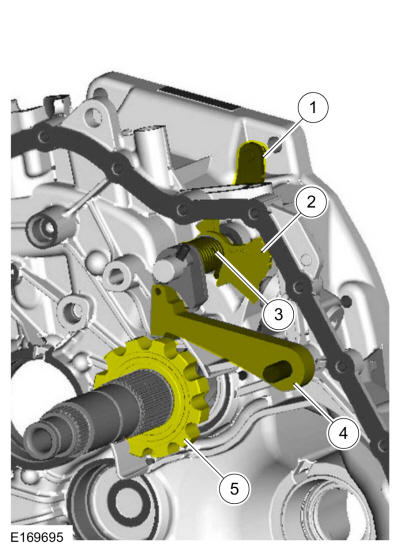

| Item |
Description |
| 1 |
Shift lever |
| 2 |
Actuating shaft |
| 3 |
Torsion spring |
| 4 |
Park pawl |
| 5 |
Park gear on output shaft B |
A park pawl needs to be installed since both clutches are opened after the engine is switched off.
