Transmission Components
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

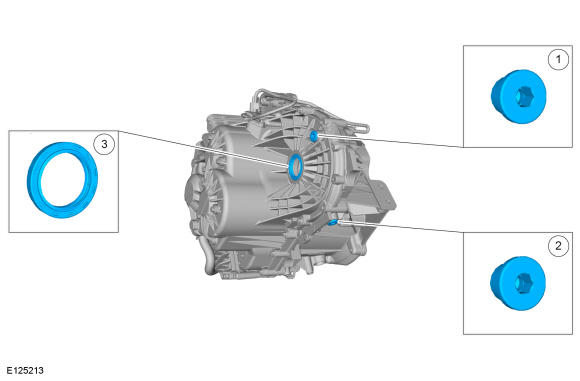

| Item |
Description |
| 1 |
Oil filler plug and level check plug |
| 2 |
Oil drain plug |
| 3 |
Halfshaft seal |
 Courtesy of FORD MOTOR COMPANY
|

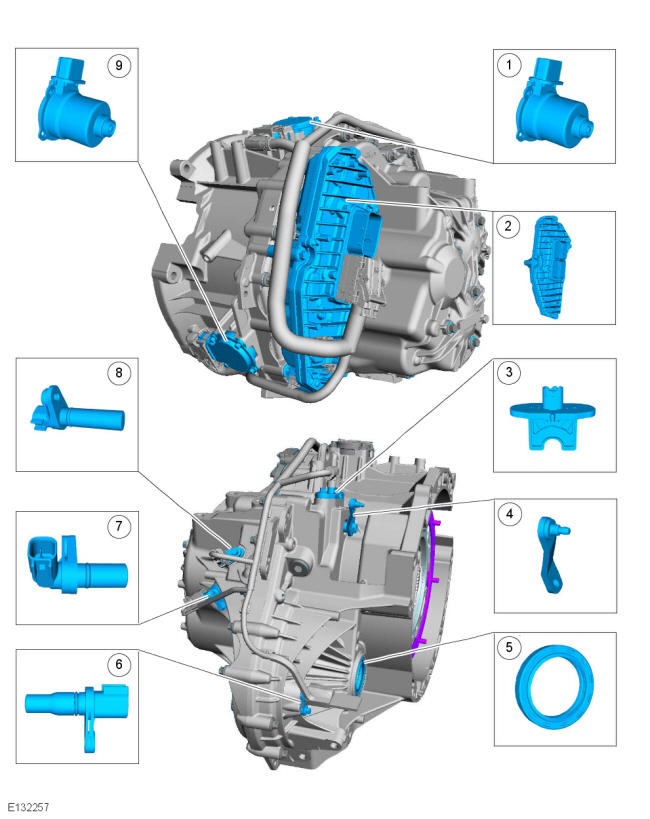

| Item |
Description |
| 1 |
Clutch actuator motor A - 1st gear, 3rd gear and 5th gear |
| 2 |
TCM |
| 3 |
The TR sensor |
| 4 |
Gear selector lever |
| 5 |
Halfshaft seal |
| 6 |
The OSS sensor |
| 7 |
ISS sensor A - 1st gear, 3rd gear and 5th gear |
| 8 |
ISS sensor B - 2nd gear, 4th gear, 6th gear and reverse gear |
| 9 |
Clutch actuator motor B - 2nd gear, 4th gear, 6th gear and reverse gear |
Dual Clutch
 Courtesy of FORD MOTOR COMPANY
|

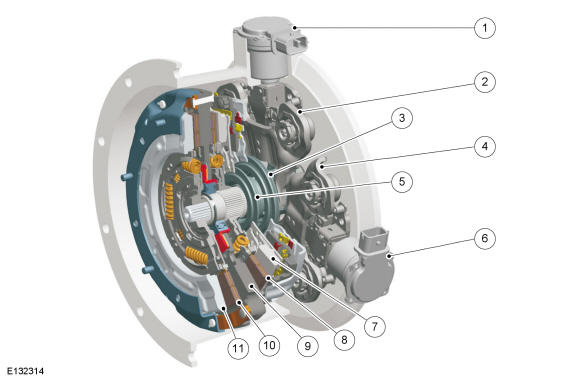

| Item |
Description |
| 1 |
Clutch actuator motor A - 1st gear, 3rd gear and 5th gear |
| 2 |
Clutch actuator A - 1st gear, 3rd gear and 5th gear |
| 3 |
Clutch engagement bearing A - 1st gear, 3rd gear and 5th gear |
| 4 |
Clutch actuator B - 2nd gear, 4th gear, 6th gear and reverse gear |
| 5 |
Clutch engagement bearing B - 2nd gear, 4th gear, 6th gear and reverse gear |
| 6 |
Clutch actuator motor B - 2nd gear, 4th gear, 6th gear and reverse gear |
| 7 |
Pressure plate B - 2nd gear, 4th gear, 6th gear and reverse gear |
| 8 |
Clutch B - 2nd gear, 4th gear, 6th gear and reverse gear |
| 9 |
Driving disc |
| 10 |
Clutch A - 1st gear, 3rd gear and 5th gear |
| 11 |
Pressure plate A - 1st gear, 3rd gear and 5th gear |
