Removal And Installation: Flexplate: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the automatic transmission. Refer to: TRANSMISSION - 2.0L DURATEC-HE (125KW 170PS) - MI4 .

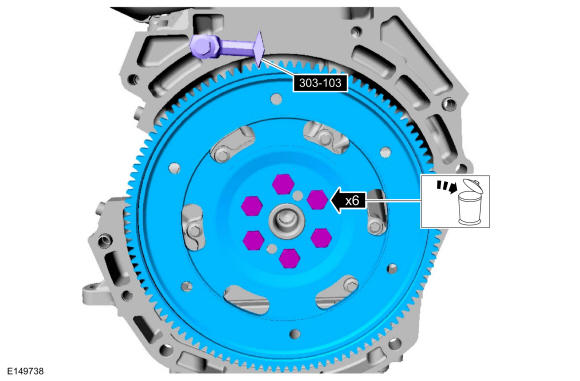

- Remove the bolts and the flexplate. Discard the bolts. Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
