Transfer Case Rear Seal: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to: Transfer Case .
-

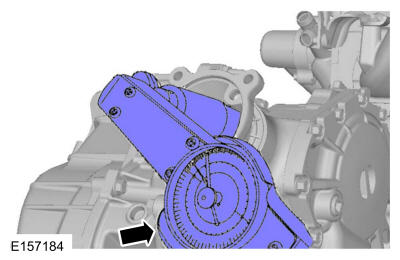

NOTE: Rotational torque of the PTU rear output shaft flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled. This will be the torque-to-turn measurement.

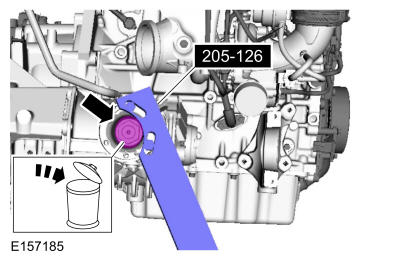

- Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

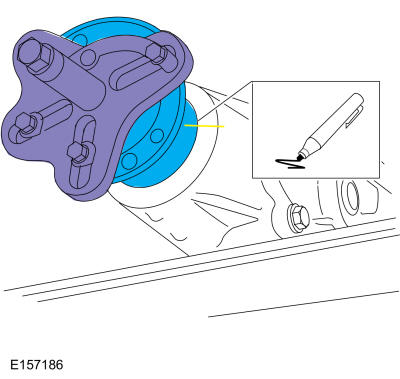

- Use the General Equipment: Puller
