Transfer Case Input Shaft Seal LH: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the PTU/transfer case. REFER to: Transfer Case .

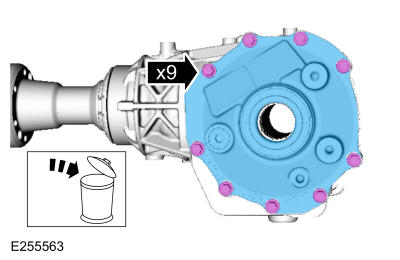

  2. Remove and discard the PTU cover bolts and remove the PTU cover.
    GFD229433Courtesy of FORD MOTOR COMPANY

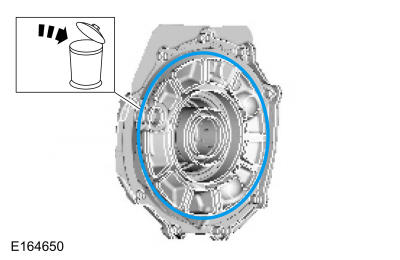

  3. Remove and discard the PTU cover O-ring seal.
    GFD229434Courtesy of FORD MOTOR COMPANY
  4. Remove the input shaft.
    GFD229435Courtesy of FORD MOTOR COMPANY

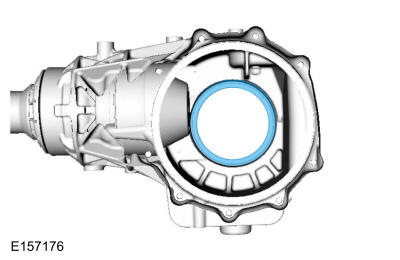

  5. Remove and discard the LH input shaft seal.
GFD229436Courtesy of FORD MOTOR COMPANY
