Roof Opening Panel Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

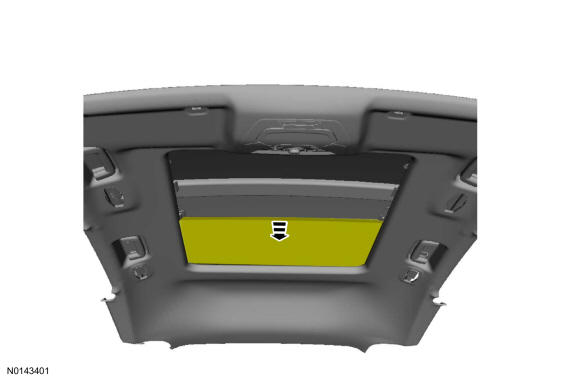

Refer to: Headliner - Lowering .

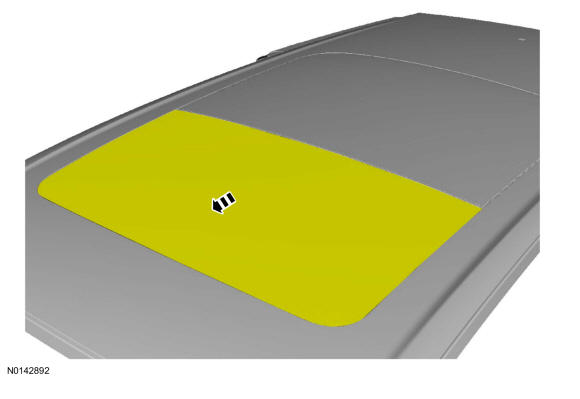

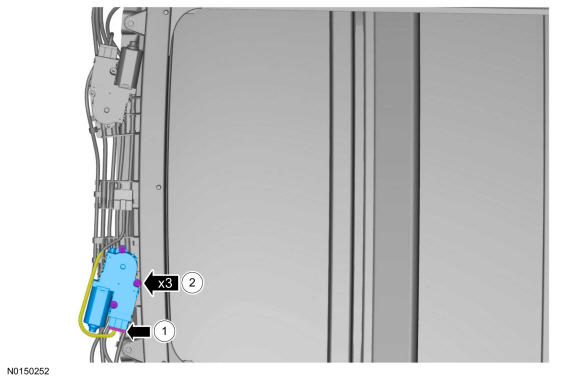

Roof Opening Panel Motor - Glass

NOTE: A new roof opening panel glass motor only moves toward the vent position until initialized.

Torque: 49 lb.in (5.5 Nm)

Courtesy of FORD MOTOR COMPANY

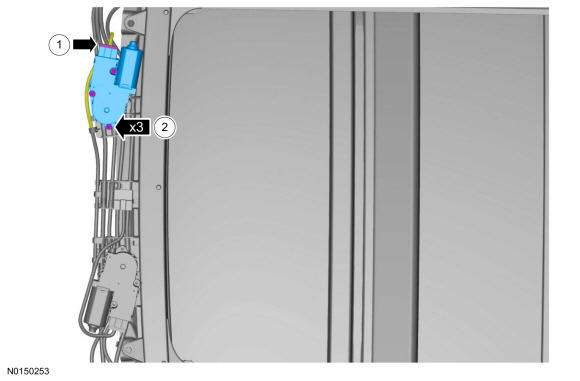

Roof Opening Panel Motor - Shield

NOTE: A new roof opening panel shield motor only moves toward the closed position until initialized.

Torque: 49 lb.in (5.5 Nm)

Courtesy of FORD MOTOR COMPANY
