Rear Wheel Knuckle - AWD: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

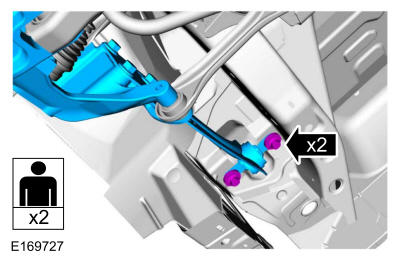

- Torque: 129 lb.ft (175 Nm)
- If equipped.
- Finger tighten only.
- Finger tighten only.

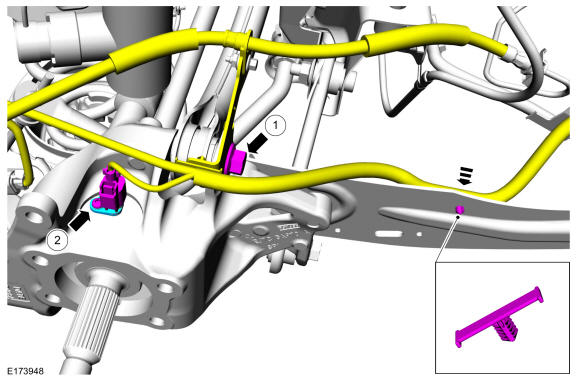

- Torque:
1: Finger tighten only. Minimum 5 turn(s)
2: 42 lb.in (4.8 Nm)
- Use the General Equipment: Vehicle/Axle Stands
-

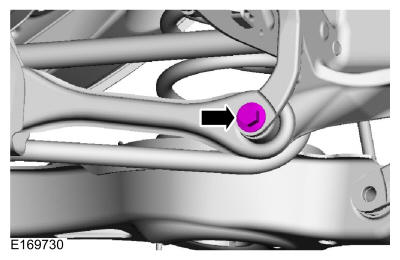

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
Torque: 129 lb.ft (175 Nm)
-

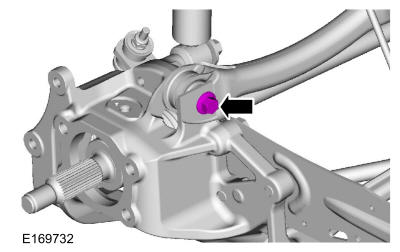

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
Torque: 129 lb.ft (175 Nm)
-

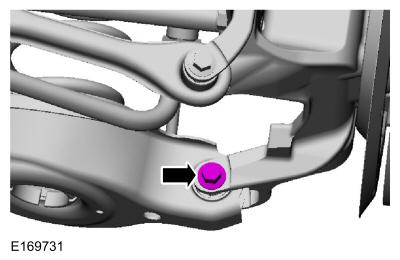

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
Torque: 129 lb.ft (175 Nm)
- Torque: 85 lb.ft (115 Nm)
- If equipped.

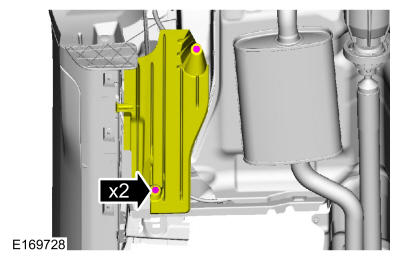

Torque: 97 lb.in (11 Nm)
- Refer to: Rear Stabilizer Bar Link .
- Refer to: Wheel Bearing and Wheel Hub - AWD .
- Refer to: Rear Toe Adjustment .
- If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
