Rear Lower Arm: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

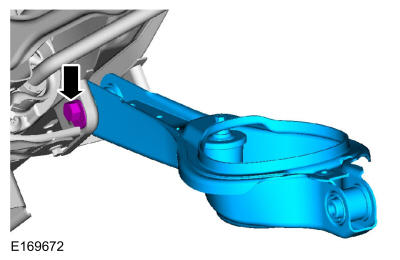

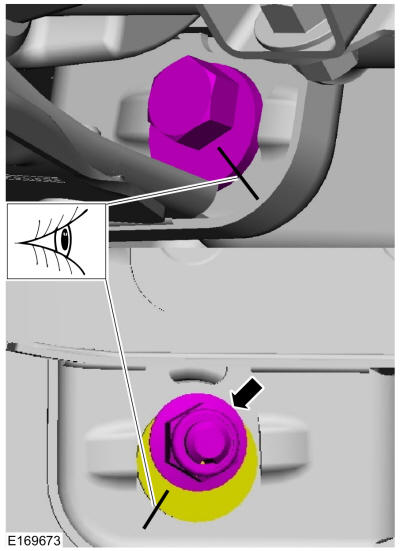

NOTE: Line up marks made during removal.

Finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

All wheel drive (AWD) vehicles
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
Refer to: Spring .
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Rear Toe Adjustment .
