Rear Front Lower Arm RH: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Finger tighten only.

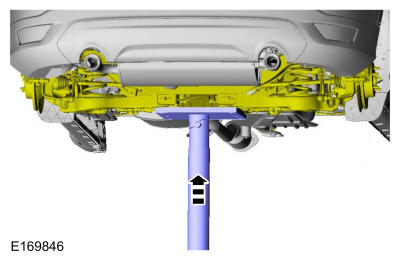

- Use the General Equipment: Transmission Jack
- Torque: 85 lb.ft (115 Nm)
- Use the General Equipment: Vehicle/Axle Stands
- Torque: 129 lb.ft (175 Nm)
-

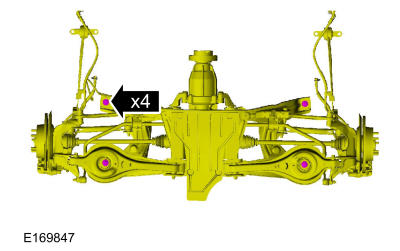

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
Torque: 129 lb.ft (175 Nm)
- Torque: 85 lb.ft (115 Nm)
- Refer to: Rear Toe Adjustment .
