Transmission Fluid Auxiliary Pump: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .Engine Front Undershield
  2. Remove the LH front wheel. REFER to: Wheel and Tire .
  3. Remove the retainers and position aside the LH fender splash shield.
    GFD228971Courtesy of FORD MOTOR COMPANY
  4. Disconnect the transmission fluid auxiliary pump electrical connector.
    GFD228972Courtesy of FORD MOTOR COMPANY

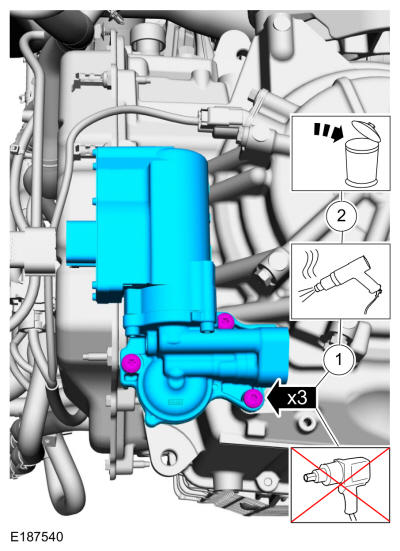

  5. NOTE: Do not use power tools to remove the transmission fluid auxiliary pump bolts or damage can occur.

    Remove the bolts and the transmission fluid auxiliary pump.

    1. Apply heat to the bolts to soften the Loctite ®.
    2. Remove and discard the bolts.

    GFD228973Courtesy of FORD MOTOR COMPANY
  6. Remove the transmission fluid auxiliary pump gasket.
    GFD228974Courtesy of FORD MOTOR COMPANY
  7. Remove the transmission fluid auxiliary pump supply tube assembly.
    GFD228975Courtesy of FORD MOTOR COMPANY

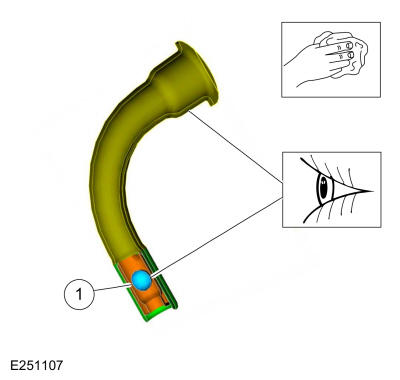

  8. Clean and inspect the transmission fluid auxiliary pump supply tube and check ball.

    1. Check ball (part of the transmission fluid auxiliary pump supply tube)

GFD228976Courtesy of FORD MOTOR COMPANY
