Engine Front Undershield

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

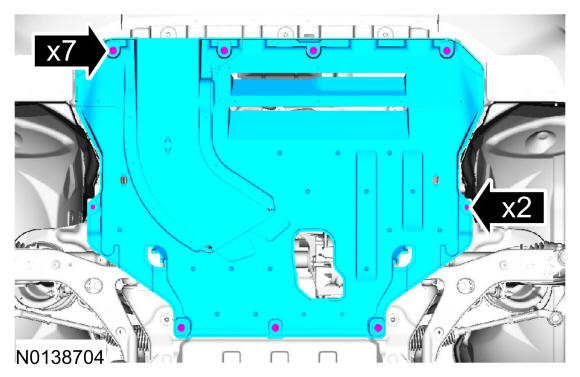

  1. Remove the bolts, grommets and the engine front undershield.
GFD229991Courtesy of FORD MOTOR COMPANY
