Active Noise Control Microphone: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Overhead console mounted microphone
- Remove the overhead console. Refer to: Overhead Console .

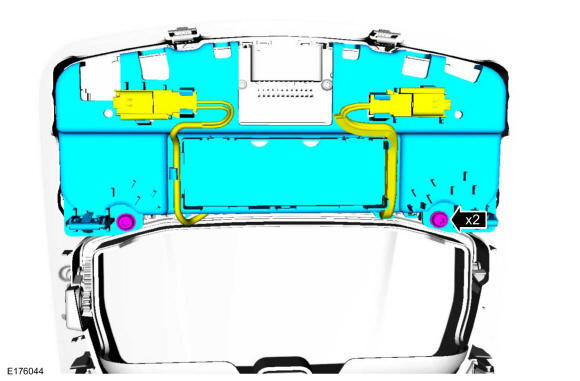

- Remove the two retainers, position aside the electrical harness and remove the microphone cover.

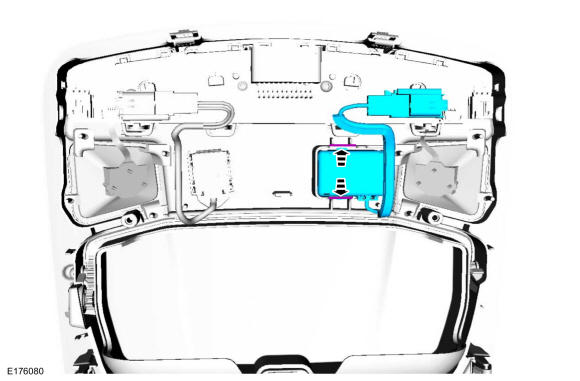

- Release the two retainers and remove the active noise cancellation microphone.
Headliner mounted microphone
- Lower the rear of the headliner. Refer to: Headliner - Lowering .
-
NOTE: For active noise cancellation microphone bezel installation issues see headliner removal and installation.

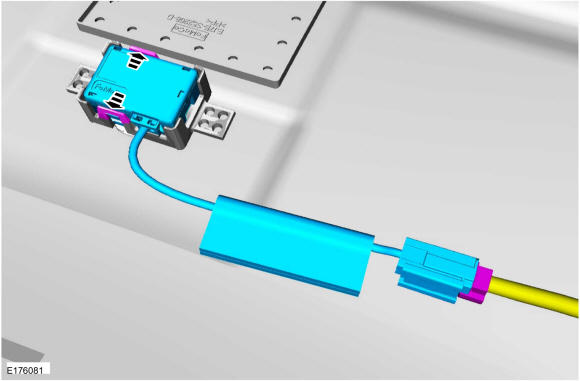

Release the two retainers and remove the active noise cancellation microphone.
- Disconnect the electrical connector.
