Input Shaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.
- 2.

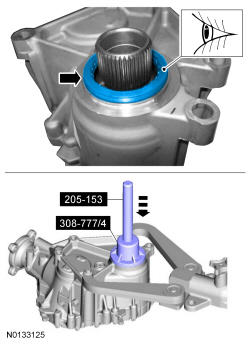

Visual check. Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/4, Handle 205-153 (T80T-4000-W).
- 3.

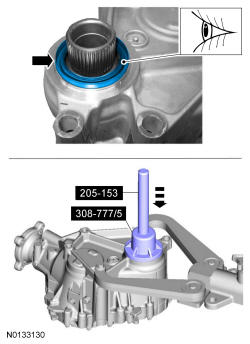

Visual check. Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/5, Handle 205-153 (T80T-4000-W).
- 5.
Install the PTU. Refer to Power Transfer Unit (PTU) .
- 6.
Fill the PTU as necessary. Refer to Power Transfer Unit (PTU) Draining and Filling .
