Instrument Cluster

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
1. Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .
2. Disassemble in the order indicated in the following illustration.

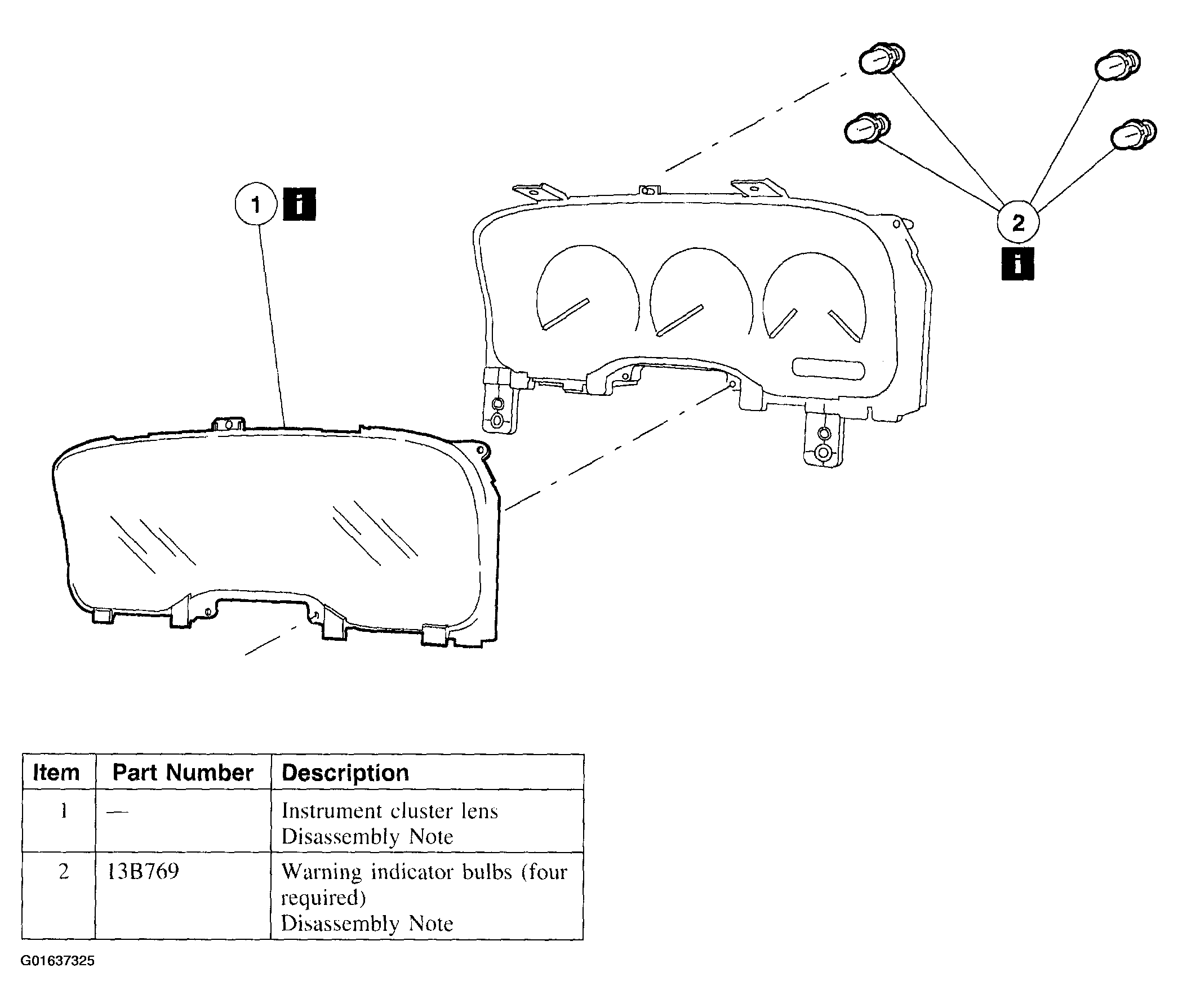

   Fig 1: Disassembling Sequence Of Instrument Cluster

   Courtesy of FORD MOTOR CO.
3. To assemble, reverse the disassembly procedure.

Item 1: Instrument Cluster Lens Disassembly Note

1. To remove the instrument cluster lens, release the four tabs on the top of the cluster and the four tabs on the bottom of the cluster then lift straight off.

Item 2: Warning Indicator Bulb Disassembly Note

1. To remove the warning indicator bulb, rotate the bulb one quarter turn counterclockwise and lift straight out from the instrument cluster.
