Air Spring Solenoid: Installation

To install, reverse removal procedure. Replace "O" rings if damaged. Coat "O" rings with Silicone Dielectric Compound (D7AZ-19A331-A) before installing. Install wheel. Tighten lug nuts to specification. See TORQUE SPECIFICATIONS  . Fill air springs. See AIR SPRING FILL OR VENT  .

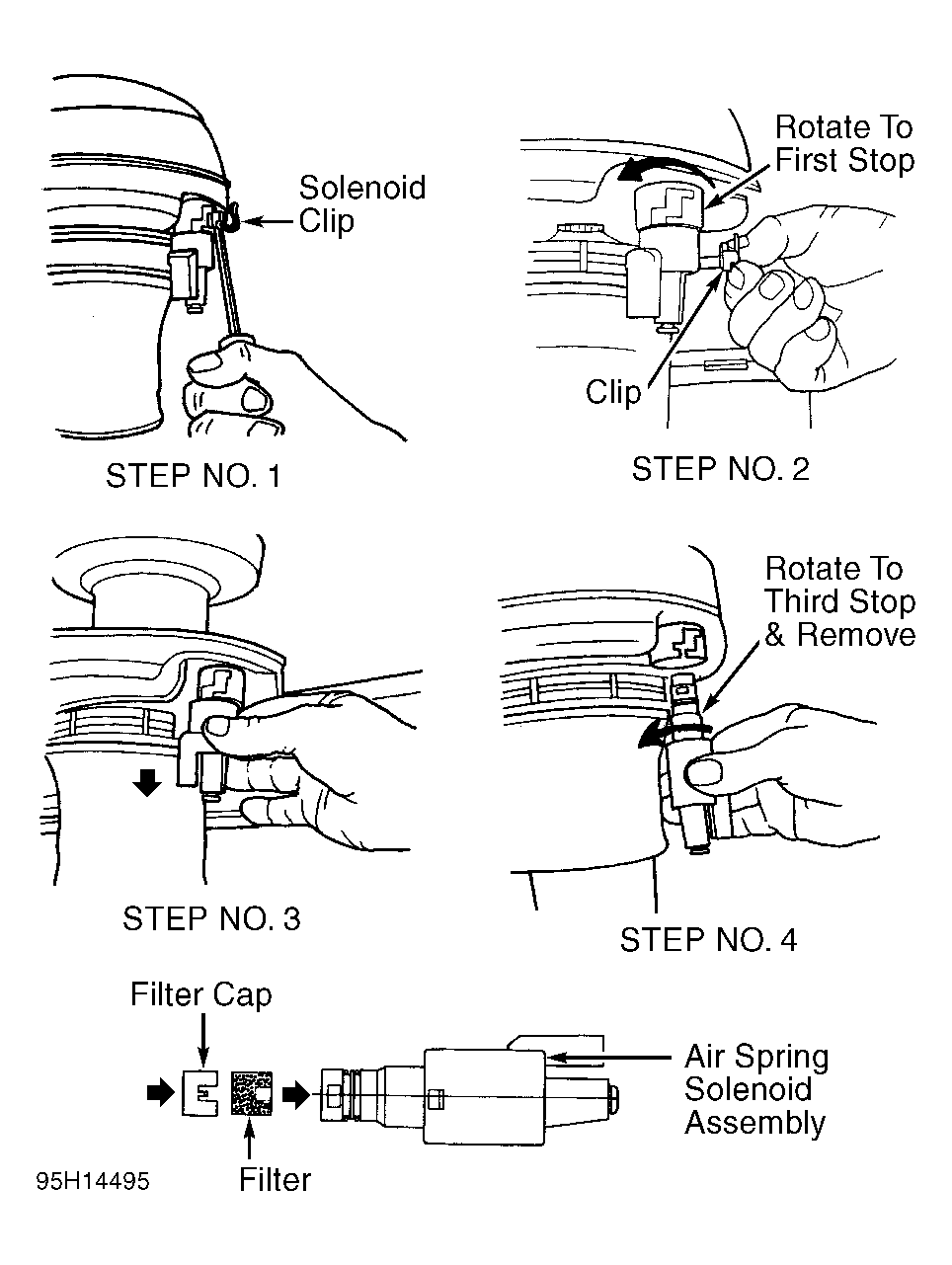

Fig 1: Removing Air Spring Solenoid
G95H14495Courtesy of FORD MOTOR CO.
