Disabling Air Bag System

Disconnect negative battery cable. Disconnect connector from back-up power supply. See Fig 1 . Back-up power supply contains a Black wire connector, and is mounted on EEC-IV module bracket assembly.

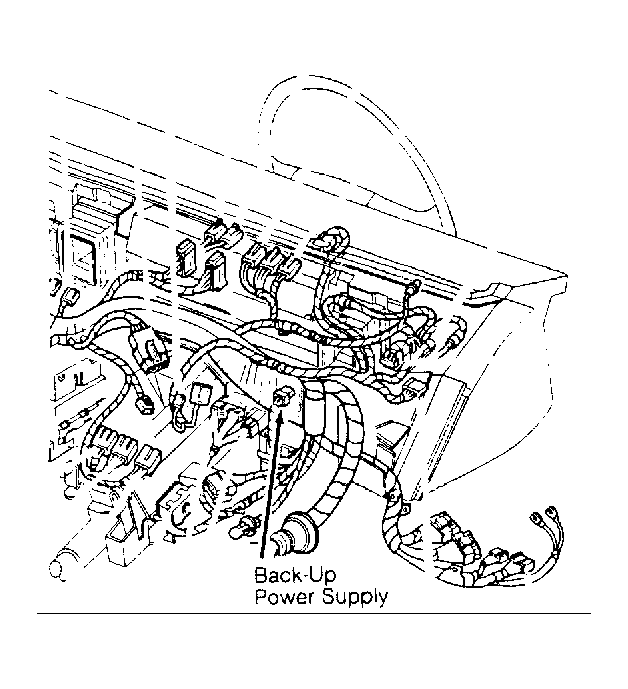

Fig 1: Identifying Back-Up Power Supply Connector

Courtesy of FORD MOTOR CO.
