Front Suspension Riding Height Adjustment

Front suspension riding height is adjusted by changing height sensor link. See Fig 1 . Proper height sensor link must be installed to for riding height changes. See FRONT SUSPENSION RIDING HEIGHT SENSOR LINK DIMENSIONS table.

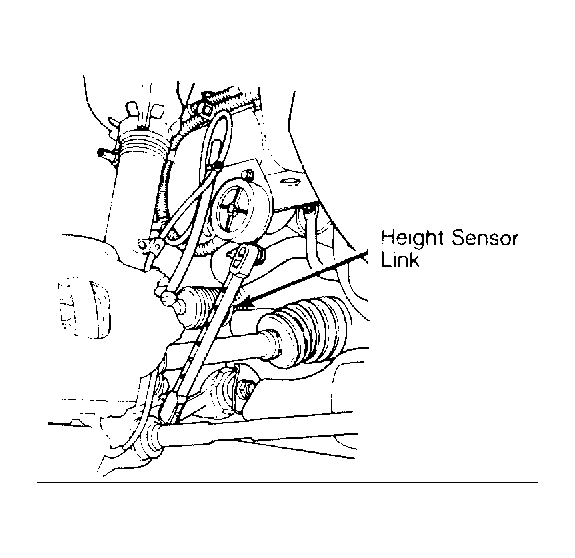

Fig 1: Locating Front Height Sensor Link
Courtesy of FORD MOTOR CO.
When removing front suspension height sensor link, carefully pry it off with a screwdriver. To prevent sensor damage when installing height sensor link, support rear of height sensor. Each increment in height sensor link change will alter riding height .24" (6.1 mm).
