Front Suspension Riding Height Sensor Link Dimensions

FRONT SUSPENSION RIDING HEIGHT SENSOR LINK DIMENSIONS

Part No. Left Front (1)	Part No. Right Front (1)	Height Sensor Link	(2) Riding Height Change In. (mm)
CA	GA	+1 (Green)	+.24 (6.1)
BA	FA	-1 (Red)	-.24 (6.1)
JA	KA	Nominal (Blue)	0
DA	HA	+2 (Yellow)	+.47 (11.9)
AA	EA	-2 (White)	-.47 (11.9)
(1) All part numbers are preceded by E80F-3C111-. (2) Riding height change is with respect to nominal link.

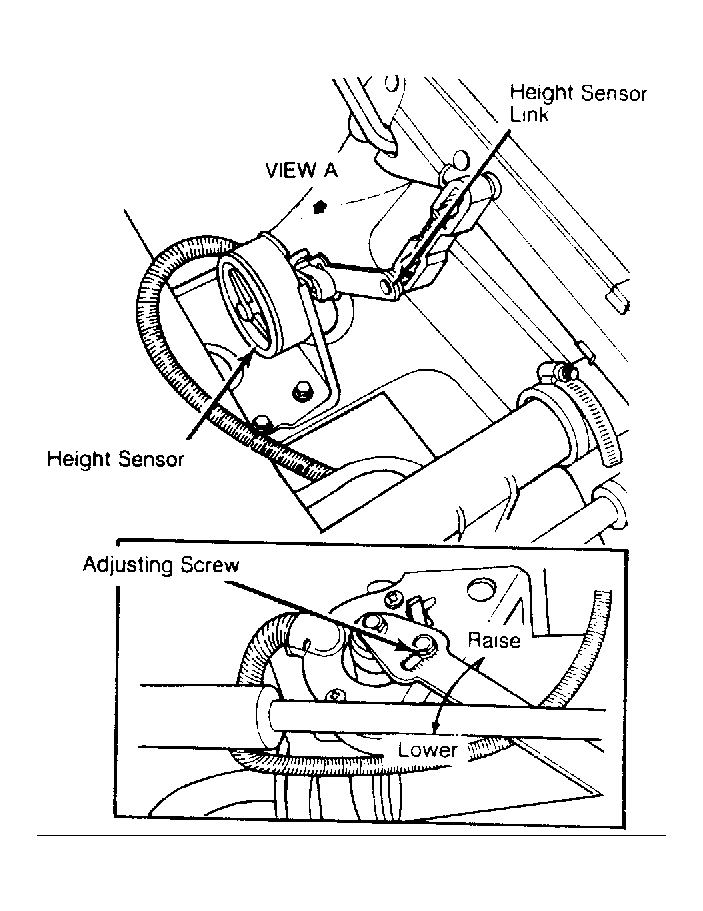

Fig 1: Adjusting Rear Suspension Riding Height

Courtesy of FORD MOTOR CO.
